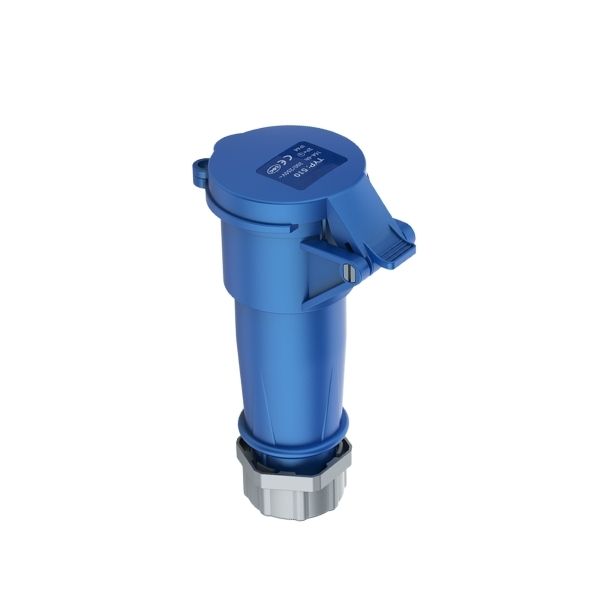

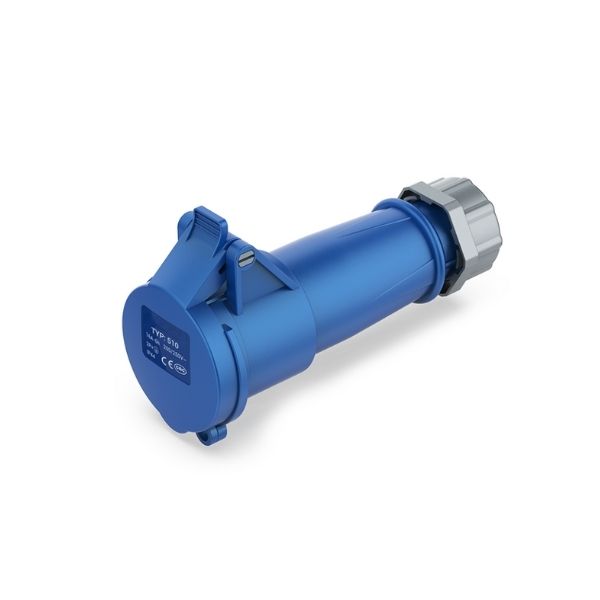

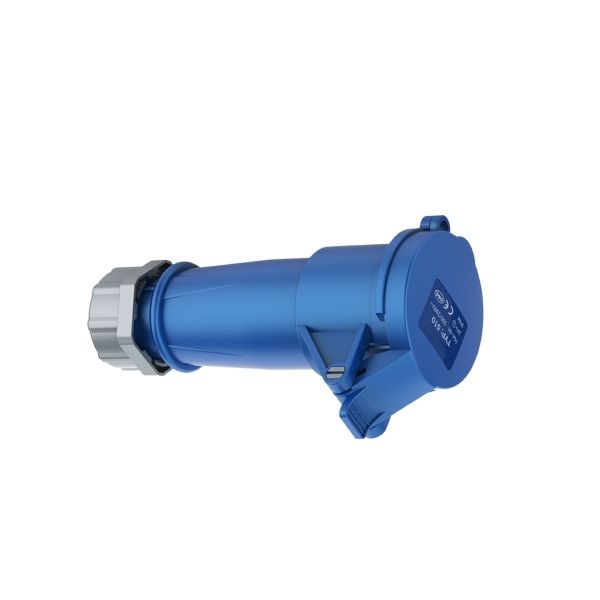

Product Overview
This 16A IEC 60309 industrial socket connector is designed for safe and stable power connections in low-voltage industrial applications.
With a 3-pin configuration and a rated voltage of 230V, it is commonly used for connecting industrial plugs to extension cables and mobile power systems.
The IP44 protection rating provides protection against solid objects and water splashes, making it suitable for indoor and light outdoor environments.
What Is a 16A Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A 16A industrial socket connector is a female IEC 60309 coupling device used to connect industrial plugs to power cables or extension cords, ensuring safe current transmission and reliable electrical connections in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3P
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 6H
- Mounting type: Inline

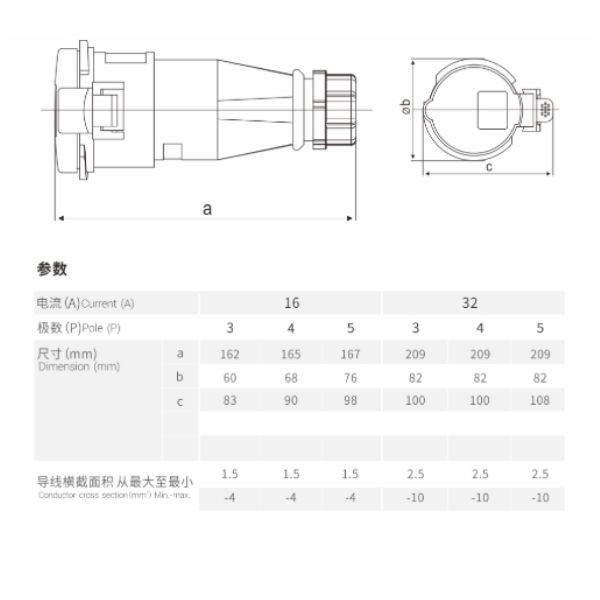

Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-510 |
| Product Type | Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A 230V inline industrial socket connector is widely used in portable and temporary power distribution systems.
- Industrial extension cables
- Workshop and factory power connections
- Maintenance and service equipment
- Mobile power supply systems
- Light outdoor industrial applications
