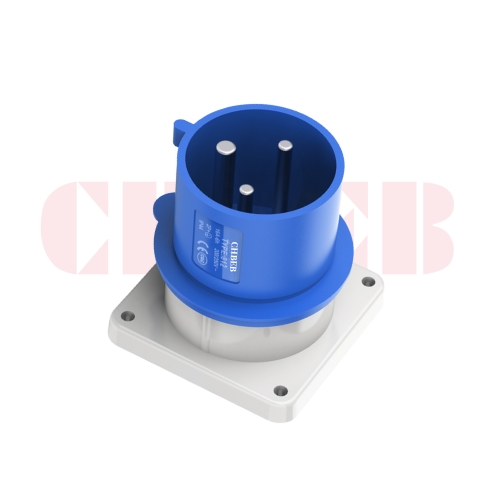

The 16A/3P-812 IP44 panel mounted plug is designed for fixed installation on electrical panels, distribution boxes, and industrial equipment.
Compliant with IEC 60309, it supports 230V (2P + Earth) power connections and uses the blue color code with standardized pin configuration for safe and reliable operation.
Its compact flange-mounted design allows secure installation on panels, while the IP44 protection rating provides resistance against solid objects and water splashes in indoor and semi-outdoor environments.
Key Features
Rated current: 16A
Rated voltage: 230V (2P + PE)
IEC 60309 standard, blue color / 6h position
Panel-mounted (flange type) design
Protection class: IP44
High-strength, flame-retardant thermoplastic housing
Nickel-plated copper pins for excellent conductivity
Secure four-screw mounting for stable installation
Compact structure for control cabinets and power panels
Typical Applications
Electrical control panels
Power distribution boxes
Industrial machinery
Temporary power outlets on equipment
Workshop and factory installations
Generator and utility interfaces
