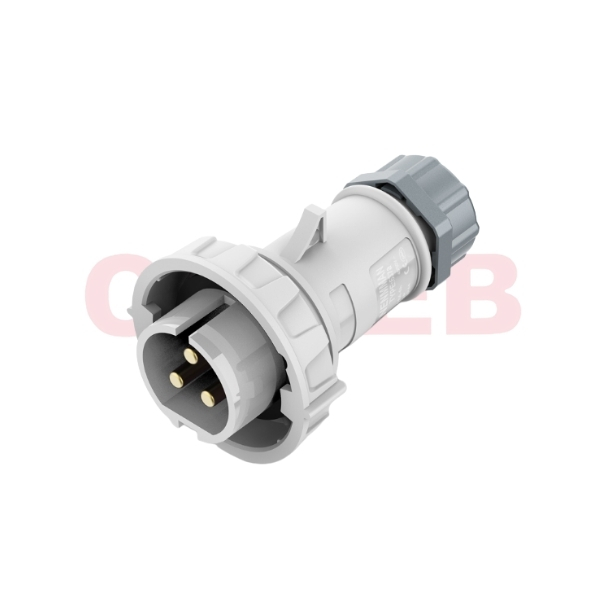

The 16A/3P-637a IP67 40V–50V Low Voltage Industrial Plug is a three-pole connector designed according to the IEC 60309 international standard. Operating within the 40–50V SELV (Safety Extra Low Voltage) range, it provides enhanced electrical safety and stable low-voltage power distribution.
With its IP67 waterproof and dustproof rating, the plug is built for harsh outdoor conditions, temporary immersion, and environments with high moisture or dust exposure.
Its flame-retardant PA6 housing ensures excellent durability, while nickel-plated copper pins deliver superior conductivity and corrosion resistance.
The grey color coding follows IEC 60309 standards for 40–50V low-voltage identification.
Key Features
Rated Current: 16A
Voltage Range: 40V–50V SELV
3-Pole Configuration (3P) for low-voltage power and control circuits
IP67 Protection: waterproof, dust-tight, suitable for severe environments
IEC 60309 Grey Coding for 40–50V systems
Flame-Retardant PA6 Housing with high impact resistance
Nickel-Plated Copper Pins for high conductivity and corrosion resistance
Enhanced cable clamping and sealing system
Typical Applications
Low-voltage control systems
Outdoor and temporary low-voltage lighting
Tunnels, mines, underground construction
Marine and port power supply
Low-voltage tools & equipment
Any environment requiring IP67 waterproof performance
