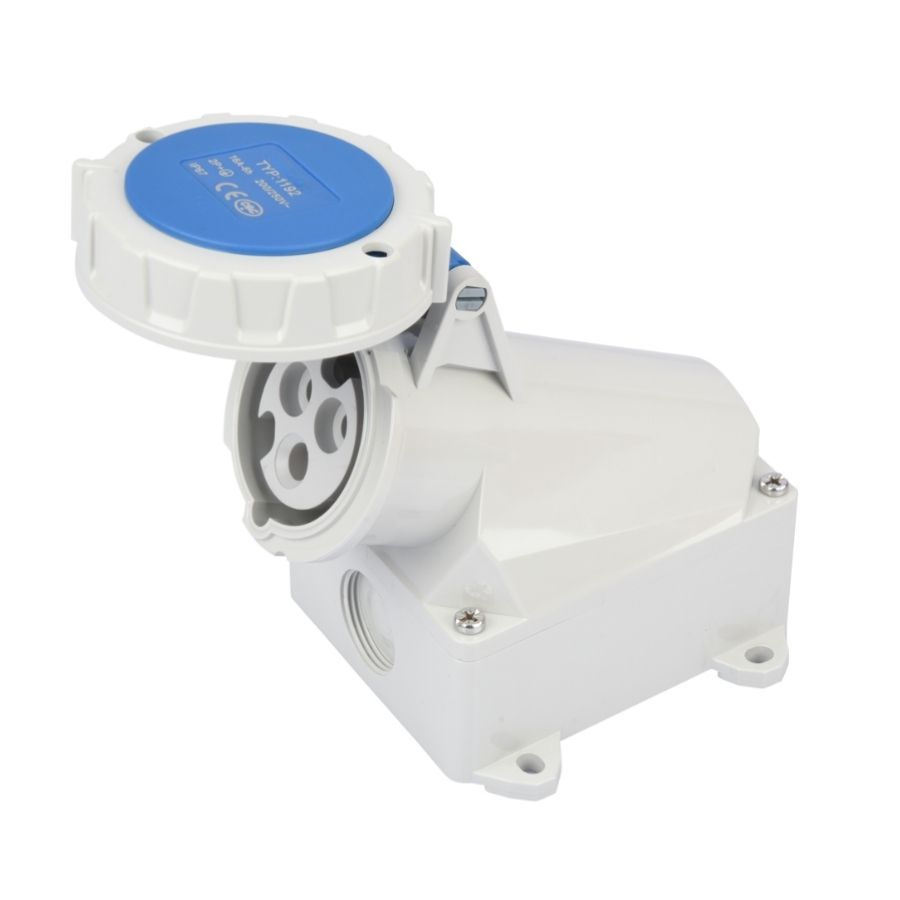

Product Overview
The CHBEB 16A 3-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable single-phase power connections for demanding industrial and outdoor environments.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this industrial socket delivers excellent resistance against dust, water immersion, and harsh environmental conditions. The blue color coding and 6h clock position clearly identify 230V power systems and help prevent incorrect connections.
It is especially suitable for outdoor installations, wet environments, and industrial applications where a high level of ingress protection is required.
What Is a 16A 3-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 230V single-phase electricity while providing enhanced protection against water and dust ingress.
It features a 2P+E pin configuration with an IP67 waterproof rating, ensuring safe grounding, reliable performance, and compatibility with matching IEC 60309 industrial plugs in harsh environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Blue (230V)
- Standard: IEC 60309
- Application: Waterproof single-phase industrial power connection

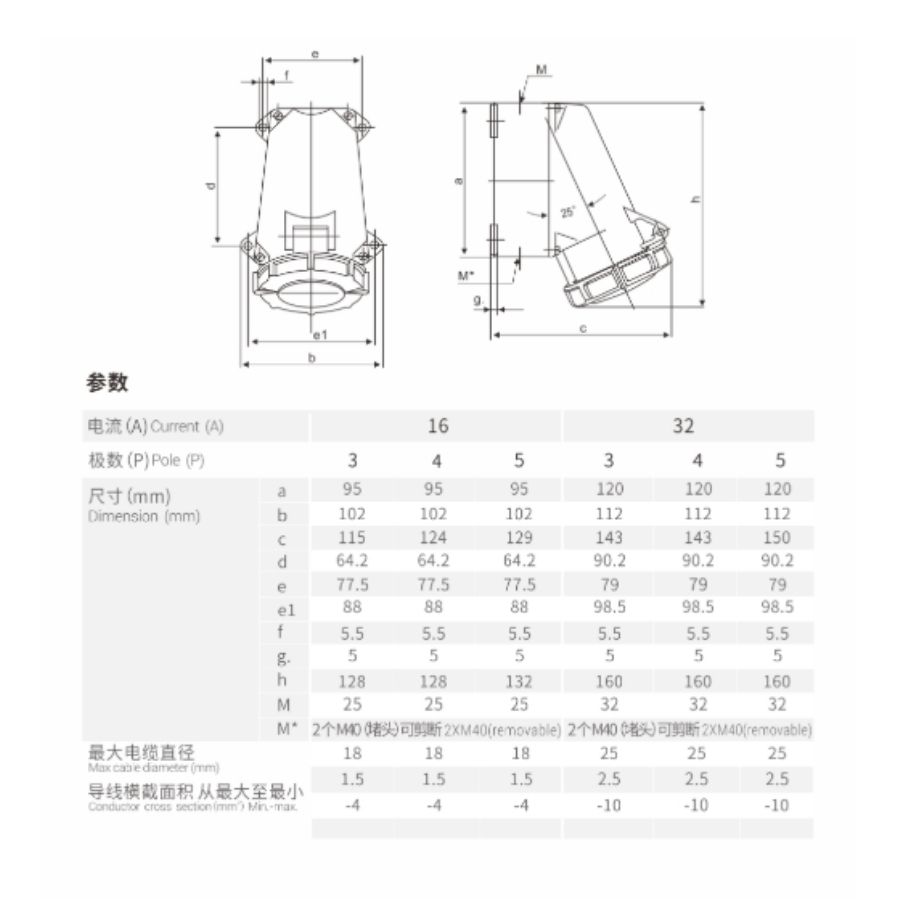

Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1192 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 3-pin IEC 60309 waterproof industrial socket is commonly used in:
- Outdoor industrial installations
- Construction sites and temporary outdoor power
- Food processing and wash-down areas
- Ports, docks, and marine environments
- Factories with high humidity or water exposure
FAQ
What is the difference between IP44 and IP67?
IP44 protects against solid objects and water splashes, while IP67 provides full dust protection and resistance to temporary water immersion, making it suitable for harsh and outdoor environments.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 3-pin IEC 60309 industrial plugs.
Is IP67 suitable for outdoor use?
Yes. IP67 protection is ideal for outdoor and wet environments, ensuring reliable operation even in rain or wash-down conditions.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and waterproof performance testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
