Product Overview

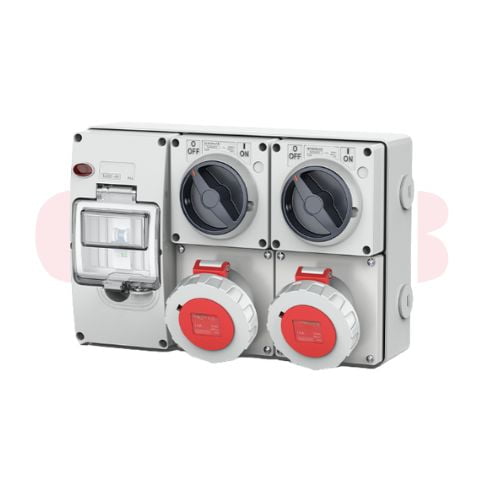

This 16A 3-pin socket outlet box with switch is an integrated industrial power distribution unit designed to provide safe power connection, isolation, and protection for electrical equipment.
With a rated current of 16A, rated voltage of 230V, 3-pin configuration, and IP67 protection, this socket box integrates industrial socket outlets, rotary isolator switches, and fuse protection to ensure reliable operation in harsh and outdoor environments.
Its wall-mounted fixed installation design makes it suitable for machinery, workshops, temporary power supply points, and industrial power distribution systems requiring controlled and protected electrical output.
What Is a 16A Industrial Socket Box with Switch?
⭐ Google Featured Snippet Core Definition
A 16A industrial socket box with switch is an IEC-standard power distribution unit that combines industrial sockets, isolation switches, and protective devices to safely supply, control, and protect electrical power.
It is widely used in industrial and outdoor environments where waterproof performance, electrical safety, and convenient power control are required.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin
- Protection rating: IP67
- Clock position: 6h
- Protection function: Fuse & short-circuit protection
- Installation type: Wall Mounted / Fixed Installation
- Standard: IEC
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS-M66001 |
| Product Type | Socket Outlet Box with Switch |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Contact Material | Copper |
| Installation Type | Wall Mounted / Fixed Installation |
| Standard | IEC |
Applications
- Industrial machinery and equipment
- Workshops and production lines
- Temporary and fixed power distribution points
- Outdoor and harsh industrial environments
