Product Overview

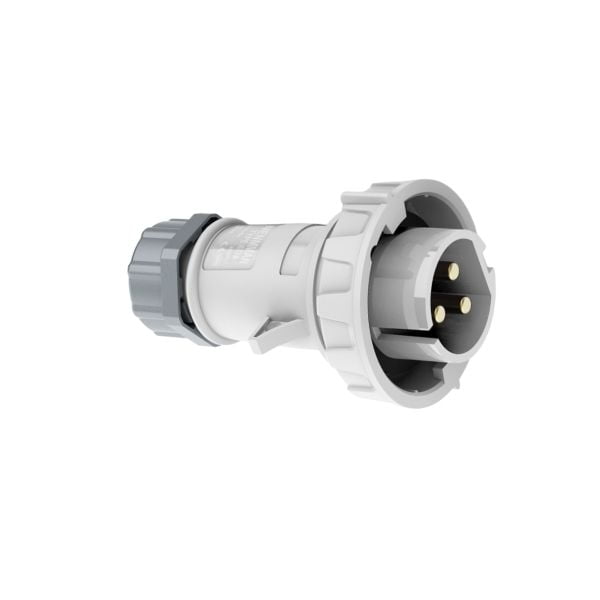

The CHBEB 16A 3-Pin Low Voltage Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for low-voltage industrial and commercial applications.
With a rated current of 16A, rated voltage of 40–50V, IP67 protection, and a defined 12h clock position, this plug ensures secure electrical connection, correct orientation, and excellent resistance to dust and water ingress in demanding environments.
It is widely used in low-voltage power supply systems, control circuits, safety lighting, and industrial applications requiring strict voltage separation and high protection levels.
What Is a 16A 3-Pin Low Voltage Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin low voltage industrial plug is a standardized power connector defined by IEC 60309, designed to supply 40–50V power for low-voltage industrial and commercial electrical applications.
It features a 3P pin configuration with a specified 12h clock position, ensuring correct alignment and preventing accidental connection to incompatible voltage systems.
Key Specifications
- Rated current: 16A
- Rated voltage: 40–50V
- Pin configuration: 3-Pin (3P)
- Protection rating: IP67
- Clock position: 12h
- Standard: IEC 60309
- Application: Low-voltage industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-637a |
| Product Type | Low Voltage Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 40–50V |
| Poles | 3P |
| Protection Rating | IP67 |
| Clock Position | 12h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 3-pin IEC 60309 low voltage industrial plug is commonly used in:
- Low-voltage industrial control systems
- Safety and inspection lighting systems
- Specialized low-voltage equipment
- Outdoor and harsh-environment installations
- Industrial sites requiring IP67 protection
FAQ
Is this plug compatible with standard IEC 60309 sockets?
Yes. This plug complies with IEC 60309 standards and is compatible with corresponding low-voltage IEC 60309 industrial sockets with the same voltag
