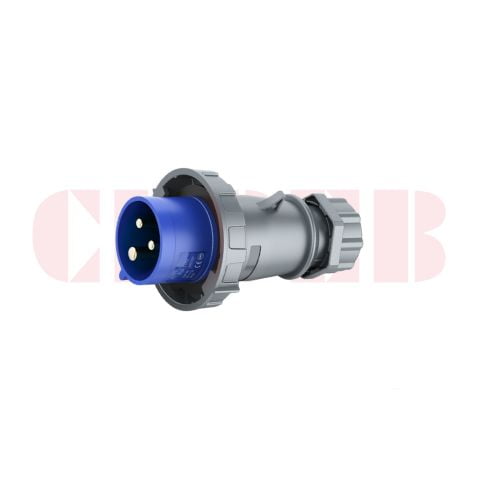

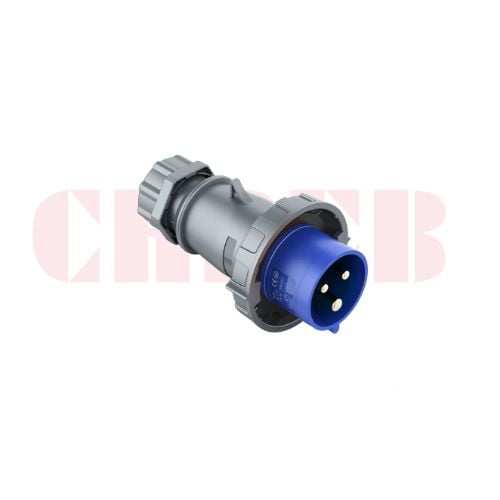

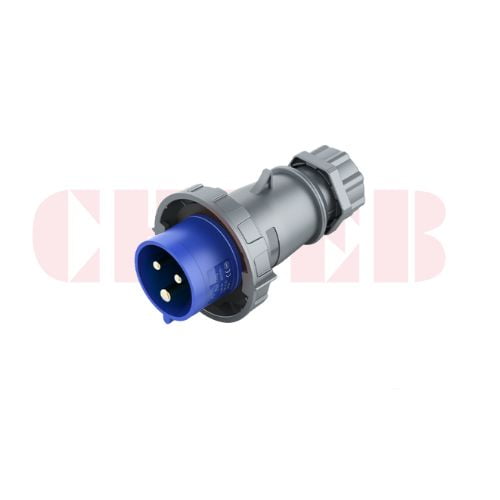

16A 3-Pin Industrial Plug, IP67, 230V, IEC 60309 CEE Plug (6h)

16A 3-Pin Industrial Plug, IP67, 230V, IEC 60309 CEE Plug (6h)

IP67 • 110V • 2P+E • 16A IEC 60309 Industrial Plug (IP67, 230V)

Technical Specifications

Model: TYP-148a
Series: Linghang
Short Name: 16A IEC 60309 Industrial Plug (IP67, 230V)
Rated Voltage: 110V
Poles: 2P+E
Protection IP: IP67
Hour Position: 6h
Color: Blue
Mounting Type: Portable
Gender: Plug (Male)
Housing Material: PA6
Conductor Material: Brass

Order Information

MOQ 600 Units

Lead Time Est. 8-9 days

Packaging

Standard Carton Color Box Pallet

Factory Direct

IEC 60309 Certified

Product Details

Product Overview

The CHBEB 16A 3-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for industrial and commercial applications.

With a rated current of 16A, rated voltage of 230V, IP67 protection, and a defined 6h clock position, this plug ensures correct orientation, stable electrical performance, and excellent resistance to dust and water ingress.

The plug features a split-type housing design, allowing faster installation, easier wiring, and improved maintenance efficiency, making it especially suitable for frequent on-site assembly and replacement.

Factory Production & Quality Control

See our real production processes and rigorous quality inspection procedures. From raw materials to finished products, every step follows strict industrial standards.

Production Process

Watch our complete manufacturing workflow from injection molding to final assembly. Advanced automation ensures consistent quality and efficiency.

IEC Standard Quality Control

Quality Inspection

Our comprehensive testing procedures include electrical safety, mechanical durability, and environmental resistance tests before shipment.

IP67 Testing CE Certified

Transparent Manufacturing Process • B2B Factory Tours Available

Quality Testing Lab

Quality Assurance

Every connector undergoes mechanical endurance tests, contact resistance tests, dielectric withstand tests, and waterproof verification. Certified by IEC 60309 and manufactured under ISO systems.

IEC 60309

International Standard

ISO 9001

Quality Management

IP44/ IP67

Protection Rating

100%

Electrical Safety Test

Internal Structure & Engineering Details

Designed for durability, safety, and long-term industrial use

Anti-Loosening Lock and IP67 Sealing Design

IP67 Rated

🔧

Anti-Loosening Lock & IP67 Sealing Design

The connector features a reinforced anti-loosening locking mechanism combined with a waterproof sealing ring. When fully tightened, it ensures a secure connection and achieves up to IP67 protection, preventing accidental disconnection and water ingress in harsh environments.

🔩

Solid Brass Contacts with Nickel Plating

High-conductivity solid brass pins with nickel plating provide excellent electrical performance, corrosion resistance, and long service life. This design reduces contact resistance and minimizes heat buildup under continuous load.

Nickel Plated

Clear Wiring Structure for Fast Installation

16A Models

1-4 mm² cables

32A Models

2.5-6 mm² cables

🔌

Clear Wiring Structure for Fast & Safe Installation

The internal terminal layout allows quick and accurate wiring. Screw-clamp terminals ensure strong cable fixation and reliable electrical contact.

16A models support 1-4 mm² cables

32A models support 2.5-6 mm² cables

🧭

Guided Slot Design to Prevent Wrong Insertion

The socket is designed with a precise guiding slot system, perfectly matching the plug's orientation. This prevents incorrect insertion and ensures safe, correct phase alignment every time.

Safety First

High-Strength Nylon Housing and Rubber Gasket

Industrial Grade

🧱

High-Strength Nylon Housing & Rubber Gasket

The housing is made from premium industrial-grade nylon, offering excellent impact resistance, flame retardancy, and durability. An integrated rubber sealing gasket improves waterproof performance and ensures a tight, stable installation on panels or enclosures.
