Product Overview

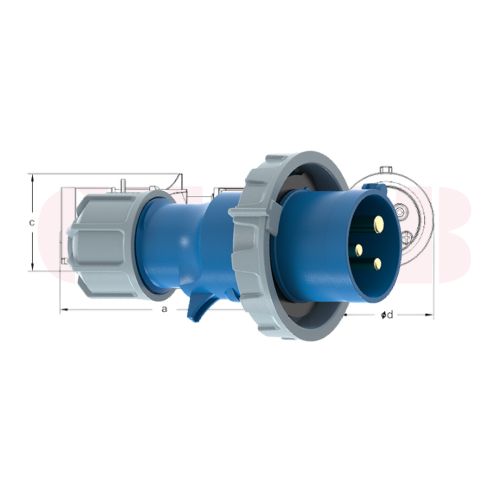

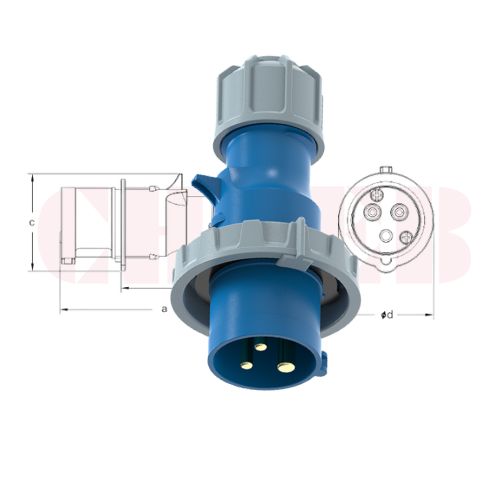

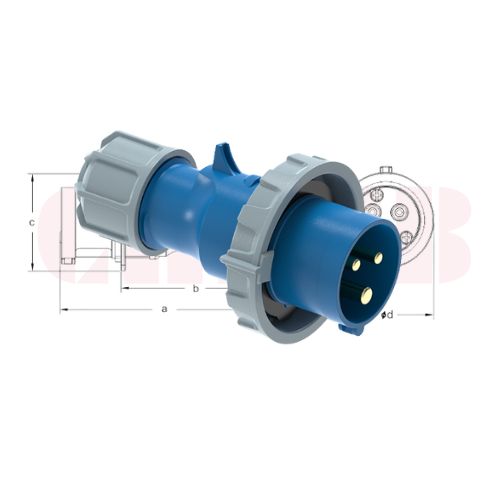

The CHBEB Harmony Series 16A industrial plug is designed for reliable single-phase power connections in industrial and commercial environments.
With a 3-pin configuration and a rated voltage of 230V, this plug supports phase, neutral, and earth conductors, ensuring safe and stable power transmission.
The IP67 protection rating provides full protection against dust and temporary water immersion, making it suitable for harsh indoor and outdoor applications.
What Is a 16A 3-Pin Industrial Plug?
A 16A 3-pin industrial plug is a single-phase electrical connector rated for 230 volts, designed with live, neutral, and earth conductors to deliver safe and stable power in industrial applications.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (L+N+E)
- Clock position: 6H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A136-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP67 |
| Pin Material | Brass H59 |
Applications
This 16A 3-pin industrial plug is suitable for single-phase power connections where high environmental protection is required.
- Industrial tools and portable equipment
- Outdoor power distribution systems
- Construction sites and temporary power setups
- Factories with wash-down or humid environments
- Commercial installations requiring IP67 protection
