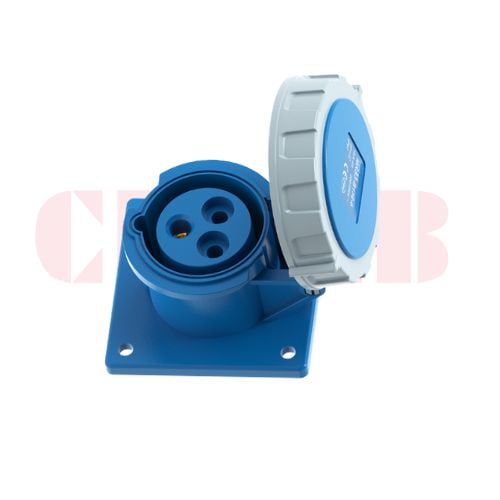

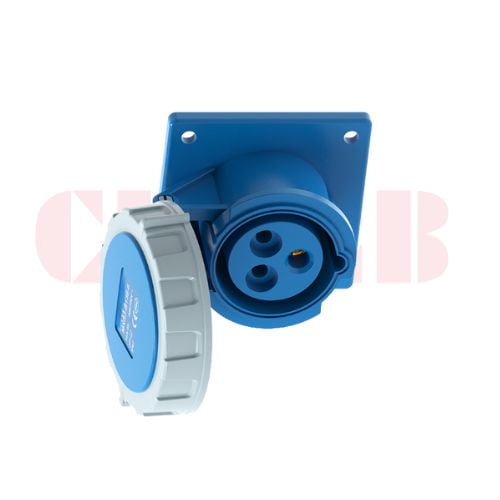

Product Overview
The CHBEB MX Series 16A 3-Pin Flanged Industrial Socket is designed in full compliance with IEC 60309 standards and engineered for secure panel mounting in harsh industrial environments.
Featuring a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection rating, this socket provides excellent resistance to dust, water ingress, and moisture. The blue color coding and 6h clock position ensure correct voltage identification and safe mating with corresponding IEC plugs.
Its flanged mounting design allows reliable installation on control panels, distribution boxes, and industrial equipment housings, making it ideal for fixed power connection points in demanding applications.
What Is a 16A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin flanged industrial socket is an IEC 60309 standardized single-phase power outlet with earth, designed for panel mounting and used to safely distribute 230V industrial power in fixed installations.
It ensures stable current transmission, reliable grounding, and high ingress protection in industrial and outdoor environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)

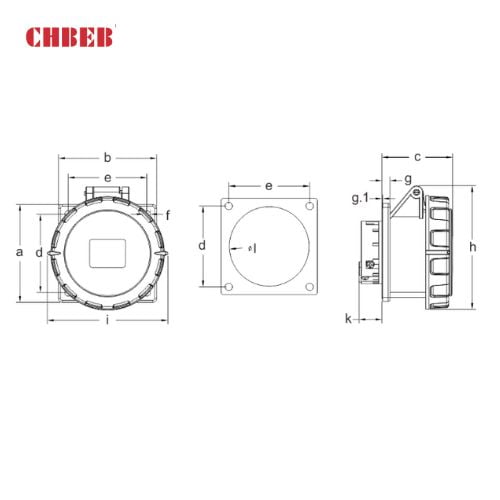

- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B136-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP67 3-pin flanged industrial socket is widely used in:
- Industrial machinery and equipment
- Electrical control panels and cabinets
- Outdoor and humid working environments
- Construction sites and workshops
- Fixed single-phase industrial power outlets
FAQ
What is the advantage of IP67 protection?
IP67 provides complete protection against dust and allows temporary immersion in water, making it ideal for outdoor and harsh industrial environments.
Is this socket suitable for panel mounting?
Yes. The flanged design is specifically engineered for secure installation on panels, enclosures, and distribution boxes.
Is it compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with all corresponding 16A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable design for harsh industrial environments
- OEM and customization services available
