Product Overview
The CHBEB MX Series 16A 3-Pin Flanged Industrial Socket is manufactured in accordance with IEC 60309 standards and designed for secure panel mounting in industrial power distribution systems.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection rating, this socket provides reliable power connection with protection against solid objects and water splashes. The blue color coding and 6h clock position ensure correct voltage identification and safe operation.

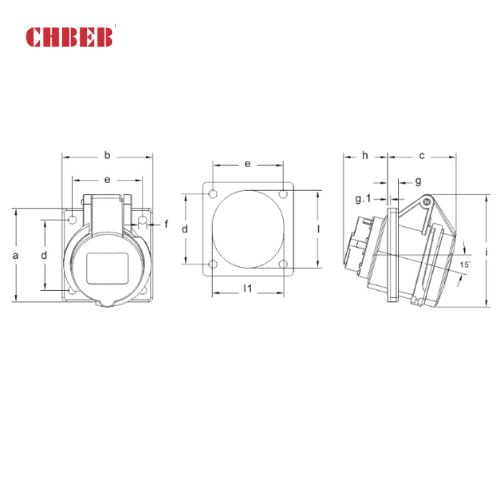

Its compact flanged mounting design makes it ideal for control panels, machinery housings, and fixed industrial installations where stable single-phase power connection is required.
What Is a 16A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin flanged industrial socket is an IEC 60309 standardized single-phase power outlet with earth, designed for panel mounting and used to safely distribute 230V industrial power in fixed installations.
It ensures reliable current transmission, secure grounding, and stable performance in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B1341-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP44 3-pin flanged industrial socket is widely used in:
- Single-phase industrial equipment
- Control panels and electrical cabinets
- Factories and workshops
- Industrial machinery power connections
- Fixed indoor and semi-outdoor installations
FAQ
What is the difference between 3-pin and 5-pin sockets?
A 3-pin socket is designed for single-phase power applications, while a 5-pin socket is used for three-phase systems that require a neutral conductor.
Is IP44 suitable for industrial use?
Yes. IP44 protection is suitable for indoor and light outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable and durable design for industrial use
- OEM and customization services available
