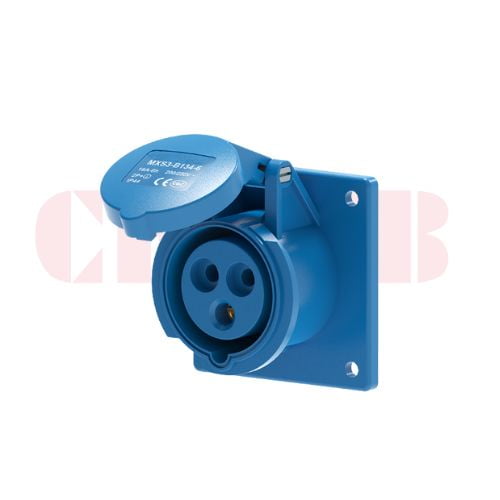

Product Overview
The CHBEB MX Series 16A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for panel or equipment mounting, providing a compact and reliable power connection solution for industrial and commercial applications.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection rating, this flanged socket offers dependable performance against solid objects and water splashes. The blue color coding and 6h clock position ensure correct voltage identification and prevent mismatching.

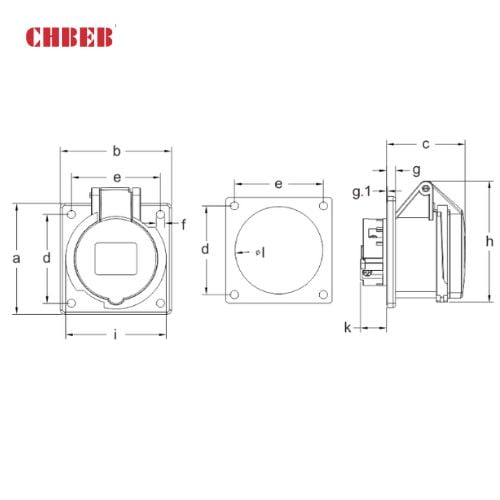

Its flange-mounted design allows secure installation onto control panels, distribution boxes, machinery enclosures, and electrical cabinets, making it ideal for fixed power connection points.
What Is a 16A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin flanged industrial socket is an IEC 60309 standardized single-phase power outlet with earth, designed for panel mounting and used to safely supply 230V industrial and commercial equipment.
It provides stable current transmission, reliable grounding, and secure fixed installation in industrial environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B134-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A IP44 flanged industrial socket is widely used in:
- Control panels and electrical cabinets
- Industrial machinery and equipment
- Distribution boxes and power outlets
- Workshops and factories
- Fixed single-phase power connection points
FAQ
What is the advantage of a flanged socket?
A flanged socket is designed for fixed panel mounting, providing a secure and space-saving installation compared to surface-mounted sockets.
Is IP44 sufficient for industrial use?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX socket range: flanged, wall-mounted, and enclosed types
- Available from 16A to 125A
- IP44 and IP67 protection options
- Strict IEC 60309 compliance
- OEM and customization services available
