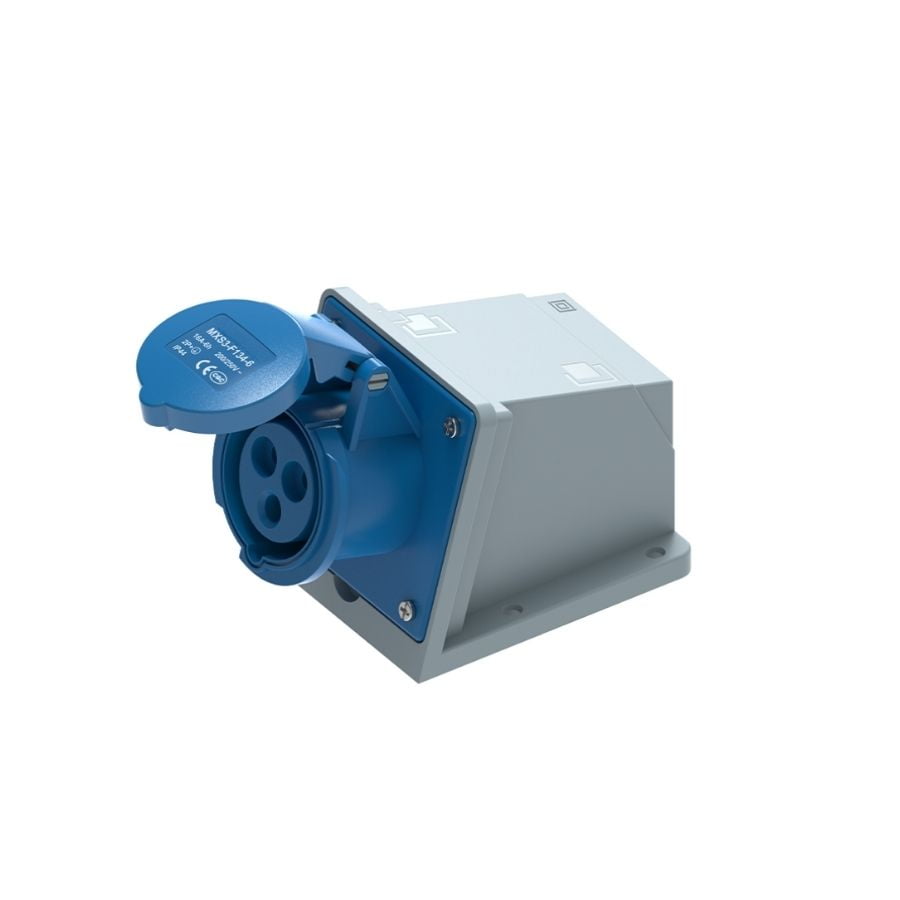

Product Overview
The CHBEB MX Series 16A 3-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a robust protective housing, providing safe and convenient power connections for industrial equipment and control systems.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection, this enclosed industrial socket offers enhanced mechanical protection and reliable performance in industrial environments. The blue color coding and 6h clock position clearly identify 230V power systems and help prevent incorrect connections.
The MX Series housing design allows the socket to be directly mounted onto machines, electrical cabinets, and distribution boxes, making it an ideal solution for OEM and equipment manufacturers.
What Is an Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
An enclosed industrial socket is an IEC 60309 standardized power connector integrated into a protective housing, designed to provide safer and more convenient electrical connections for industrial equipment and control panels.
It combines the reliability of IEC 60309 industrial sockets with additional mechanical protection, simplifying installation and improving durability in industrial applications.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
- Application: Equipment-mounted industrial power connection

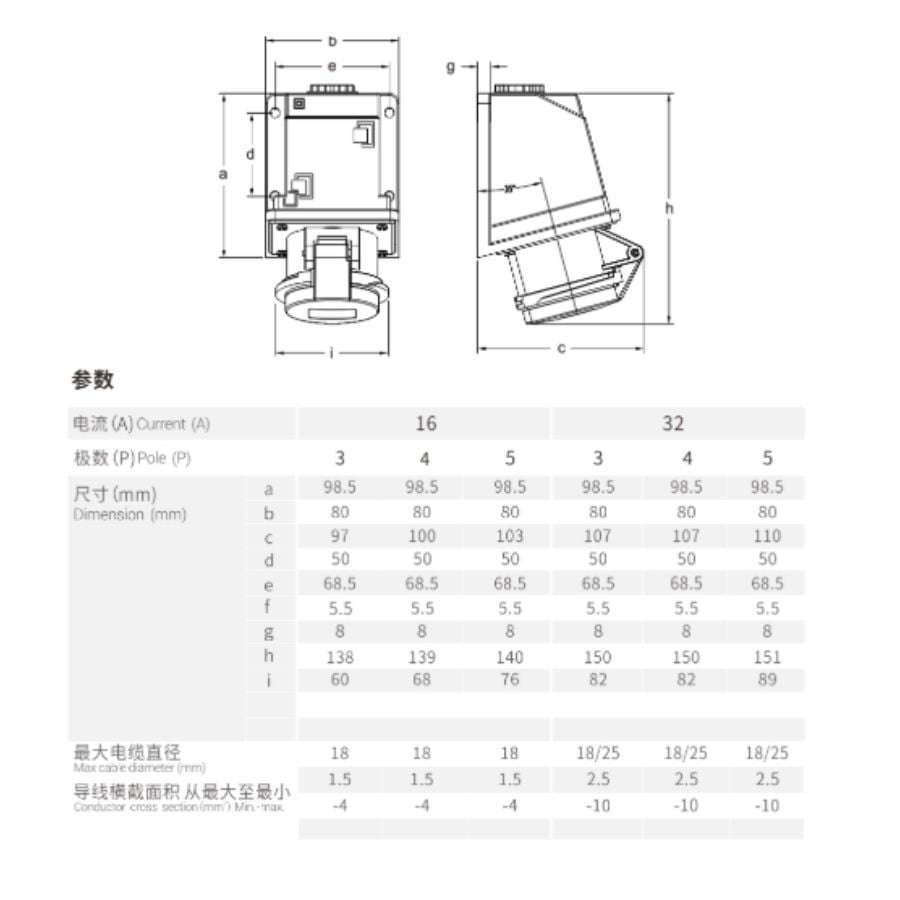

Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F134-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 16A enclosed industrial socket is widely used in:
- Industrial machinery and equipment
- Electrical control cabinets
- OEM equipment manufacturing
- Power distribution boxes
- Factory automation systems
FAQ
What is the advantage of an enclosed industrial socket?
An enclosed industrial socket provides additional mechanical protection and easier installation compared to standard surface-mounted sockets, making it ideal for equipment and cabinet integration.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 16A IEC 60309 industrial plugs.
Is IP44 suitable for industrial use?
IP44 protection is suitable for indoor and light industrial environments, offering protection against solid objects and water splashes.
