Product Overview

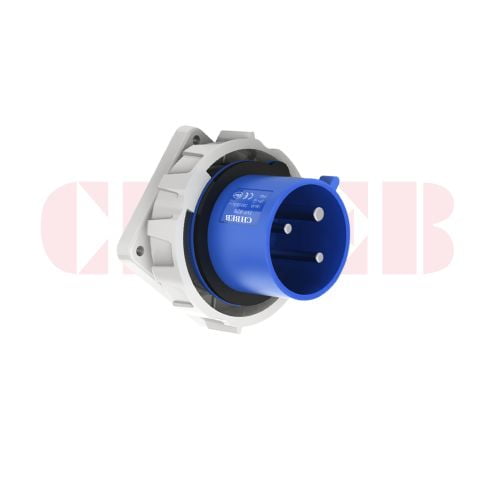

The CHBEB 16A 3-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a secure and waterproof panel-mounted power input solution for industrial equipment.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this appliance inlet ensures reliable power transmission even in wet or harsh industrial environments. The blue color coding and 6h clock position enable correct voltage identification and safe connection.
Its rugged panel-mounted design makes it suitable for fixed installation on machines, control panels, and electrical enclosures.
What Is a 16A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to safely receive 230V single-phase industrial power.
It is commonly used as a fixed power input interface for industrial machinery, cabinets, and portable equipment.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-826 |
| Product Type | Appliance Inlet |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 16A IP67 3-pin appliance inlet is widely used in:
- Single-phase industrial machinery
- Electrical control panels
- Portable industrial equipment
- Food processing and outdoor equipment
- Wet, dusty, and harsh industrial environments
FAQ
What is the advantage of IP67 appliance inlets?
IP67-rated appliance inlets provide full dust protection and resistance to temporary water immersion, making them ideal for outdoor and wash-down environments.
Is this inlet compatible with IEC 60309 blue plugs?
Yes. This appliance inlet is fully compatible with IEC 60309 16A 230V blue industrial plugs.
Can this inlet be used outdoors?
Yes. Its IP67 protection level makes it suitable for outdoor and harsh industrial applications.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet product range
- Current ratings from 16A to 125A
- IP44 and IP67 protection options
- High-quality H59 brass contacts
- OEM and customization services available
