Product Overview

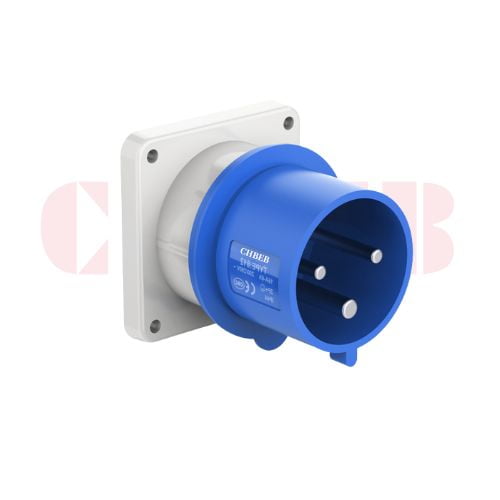

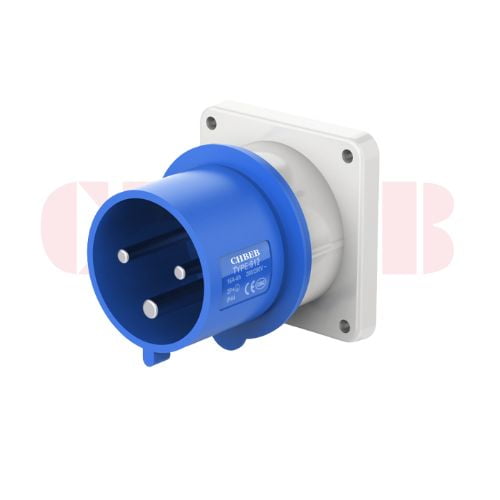

The CHBEB 16A 3-Pin Appliance Inlet is manufactured in compliance with IEC 60309 standards, providing a reliable panel-mounted power input solution for industrial equipment and electrical devices.
With a rated current of 16A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection, this appliance inlet delivers safe and stable single-phase power connections. The blue color coding and 6h clock position ensure correct voltage identification and prevent incorrect mating.

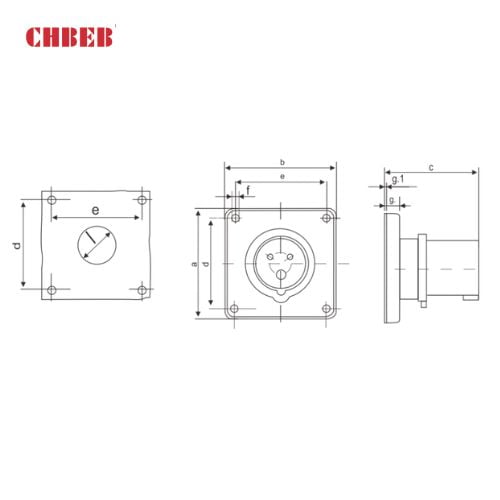

Its compact panel-mounted design makes it ideal for fixed installation on machines, control panels, and electrical enclosures where a dependable power inlet is required.
What Is a 16A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on electrical equipment, designed to receive 230V single-phase industrial power safely and reliably.
It is commonly used as a power input interface for industrial machines, portable equipment, and control panels.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-812 |
| Product Type | Appliance Inlet |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 16A IP44 3-pin appliance inlet is widely used in:
- Single-phase industrial equipment
- Electrical control panels
- Portable machinery and tools
- Industrial power distribution systems
- Fixed indoor and semi-outdoor installations
FAQ
What is the difference between an appliance inlet and a socket?
An appliance inlet is a male connector mounted on equipment to receive power, while a socket is a female connector used to supply power.
Is IP44 suitable for industrial use?
Yes. IP44 protection provides resistance against solid objects and water splashes, making it suitable for indoor and light industrial environments.
Is this inlet compatible with IEC 60309 plugs?
Yes. This inlet fully complies with IEC 60309 standards and is compatible with corresponding 16A 3-pin IEC industrial plugs.
Why Choose CHBEB?
- Complete range of IEC 60309 appliance inlets
- Available in 16A, 32A, 63A, and 125A ratings
- IP44 and IP67 protection options
- High-quality H59 brass contacts
- OEM and customization services available
