Product Overview

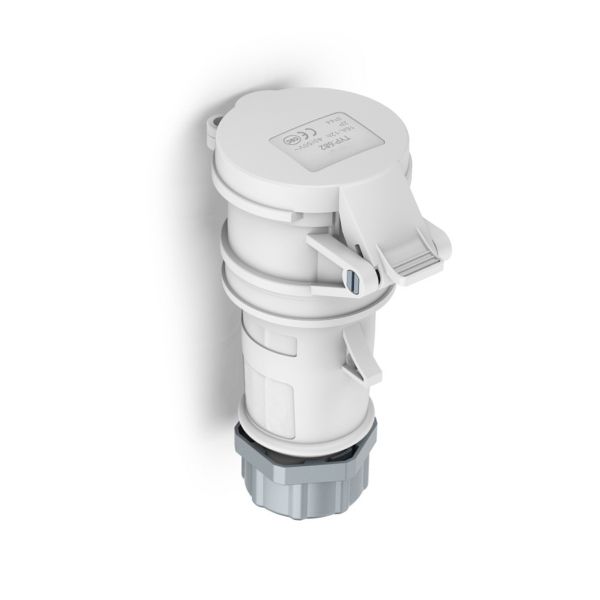

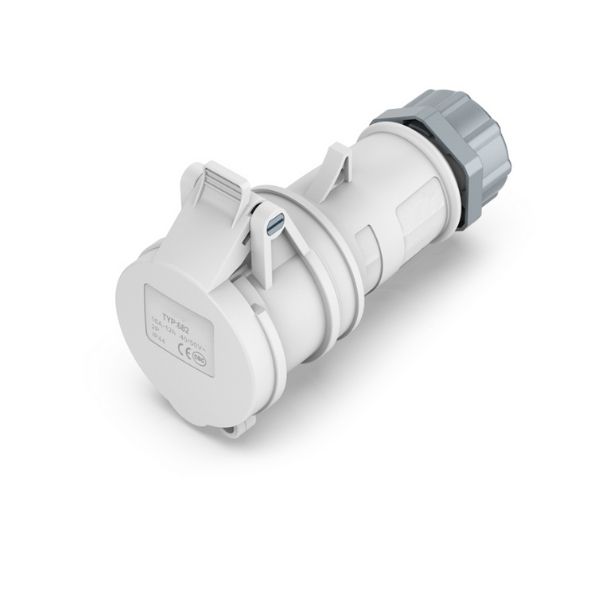

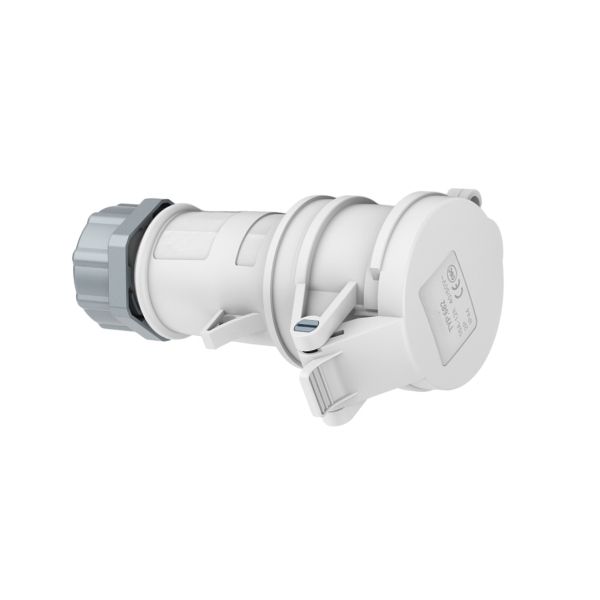

This 16A low voltage industrial socket connector is designed for extra-low voltage power systems operating between 40V and 50V.
With a 2-pin configuration and inline mounting structure, it provides a safe and reliable female connection for low-voltage industrial equipment and auxiliary power circuits.
The IP44 protection rating ensures protection against solid objects and water splashes, making it suitable for indoor and light outdoor applications.
What Is a Low Voltage Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A low voltage industrial socket connector is a female IEC 60309 inline connector designed for extra-low voltage applications, typically operating between 40V and 50V, providing safe and stable electrical connections for control and auxiliary power systems.
Key Specifications
- Rated current: 16A
- Rated voltage: 40–50V (Low Voltage)
- Pin configuration: 2P
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 12H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-682 |
| Product Type | Low Voltage Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 40–50V |
| Poles | 2P |
| Clock Position | 12H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This 16A low voltage industrial socket connector is suitable for applications requiring stable and safe power delivery within the 40V to 50V range.
- Industrial control systems
- Auxiliary and signaling power circuits
- Automation and instrumentation equipment
- Low-voltage power distribution systems
- Testing and special-purpose machinery
