Product Overview

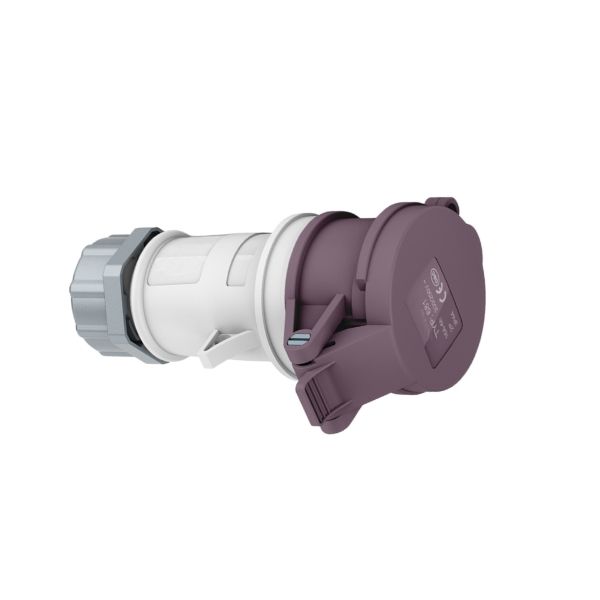

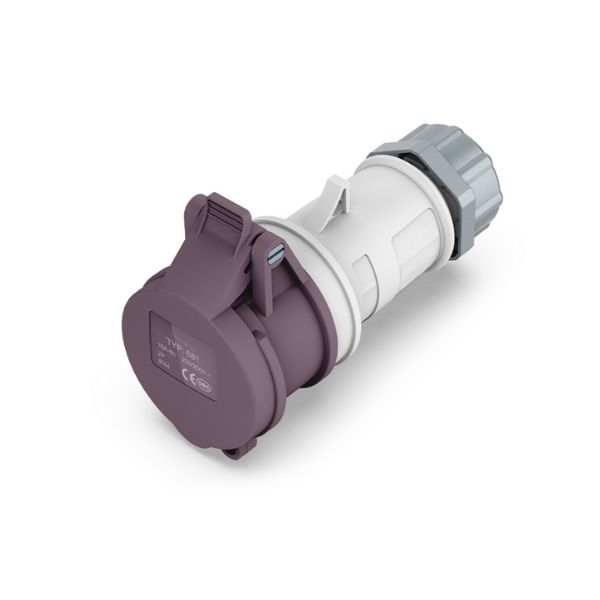

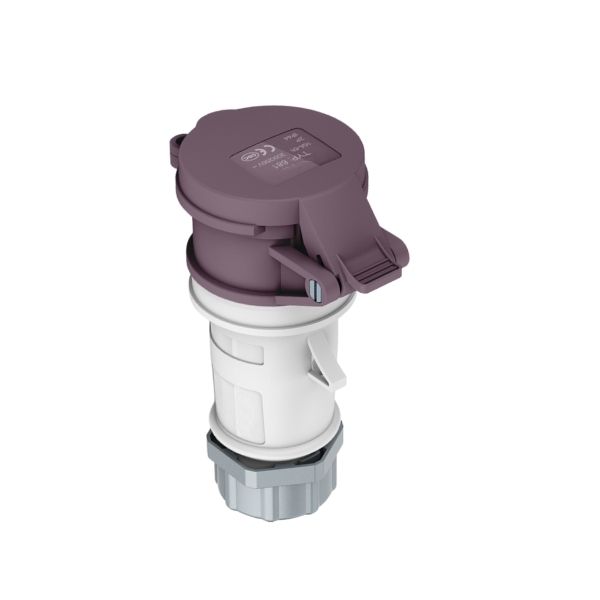

This 16A low voltage industrial socket connector is designed for safe power connections in extra-low voltage applications ranging from 20V to 25V.
Featuring a 2-pin configuration and inline mounting design, it is commonly used for control systems, auxiliary power supplies, and low-voltage industrial equipment.
The IP44 protection rating provides protection against solid objects and water splashes, making it suitable for indoor and light outdoor environments.
What Is a Low Voltage Industrial Socket Connector?
⭐ Google Featured Snippet Core Definition
A low voltage industrial socket connector is a female IEC 60309 inline connector designed for extra-low voltage power systems, typically operating between 20V and 25V, providing safe and reliable electrical connections for control and auxiliary circuits.
Key Specifications
- Rated current: 16A
- Rated voltage: 20–25V (Low Voltage)
- Pin configuration: 2P
- Standard: IEC 60309
- Protection rating: IP44
- Clock position: 12H
- Mounting type: Inline
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-681 |
| Product Type | Low Voltage Industrial Socket Connector (Female) |
| Rated Current | 16A |
| Rated Voltage | 20–25V |
| Poles | 2P |
| Clock Position | 12H |
| Protection Rating | IP44 |
| Mounting Type | Inline |
| Pin Material | Brass H59 |
Applications
This low voltage 16A industrial socket connector is suitable for applications requiring safe extra-low voltage power connections.
- Control and signal power systems
- Auxiliary power circuits
- Industrial automation equipment
- Temporary low-voltage power supply
- Special-purpose machinery and test equipment
