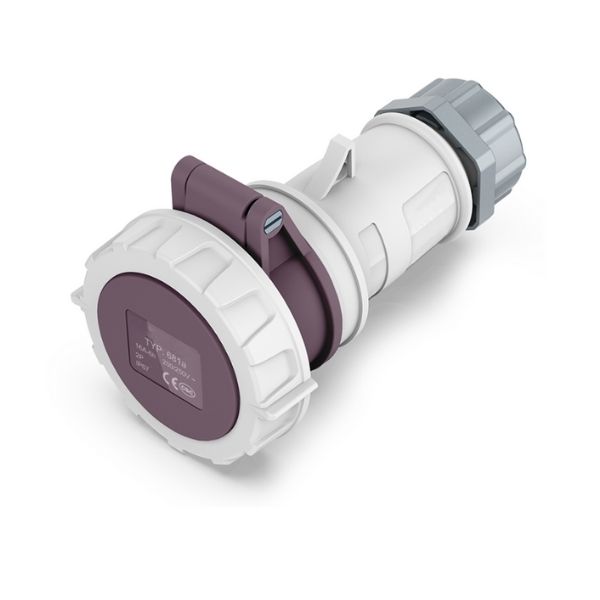

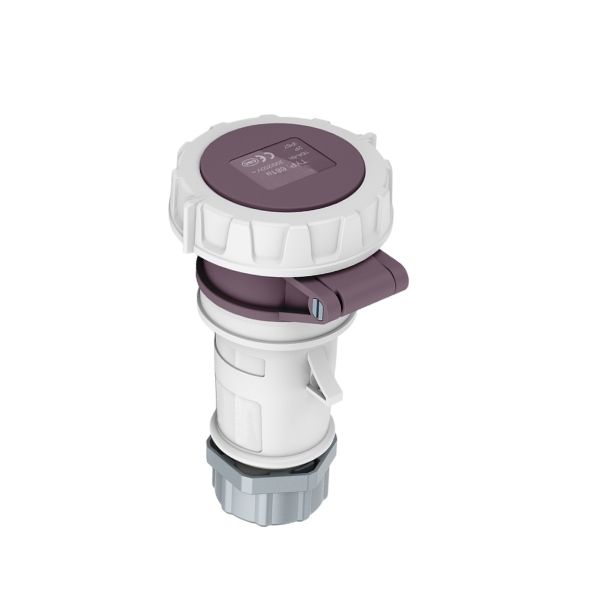

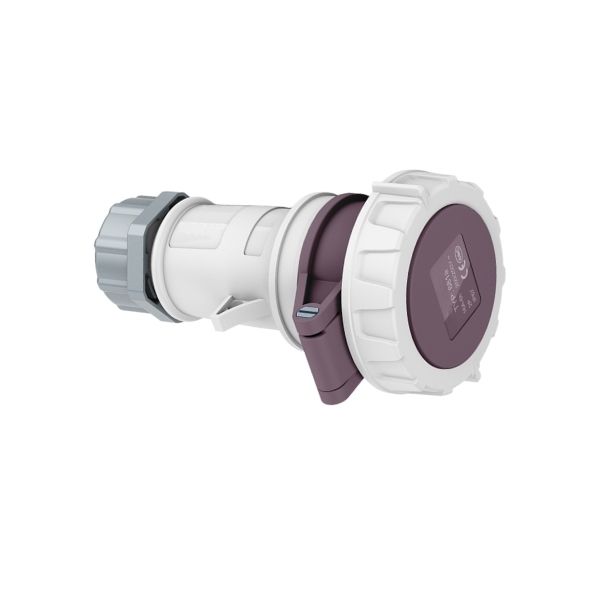

Product Overview
The 16A 2-Pin low voltage industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for low-voltage industrial and commercial applications.
With a rated current of 16A, rated voltage range of 20–25V, IP67 protection, and a defined 12h clock position, this connector ensures correct mating, stable current transmission, and reliable protection against dust and water ingress.
The inline connector structure allows flexible cable termination and secure locking, making it suitable for portable equipment, low-voltage power distribution, and demanding outdoor environments.
What Is a 16A 2-Pin Low Voltage Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 16A 2-pin low voltage industrial connector is a standardized IEC 60309 power connector designed to supply 20–25V industrial electricity for control circuits and low-voltage equipment.
Its inline construction supports easy cable assembly and secure electrical connections, making it ideal for portable devices, low-voltage power systems, and industrial auxiliary power applications.
Key Specifications
- Rated Current: 16A
- Poles: 2P
- Rated Voltage: 20–25V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 12h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 16A |
| Number of Poles | 2P |
| Rated Voltage | 20–25V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 12h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Low-voltage industrial control systems
- Portable low-voltage equipment
- Auxiliary power connections
- Outdoor low-voltage power distribution
- Maintenance and service applications
