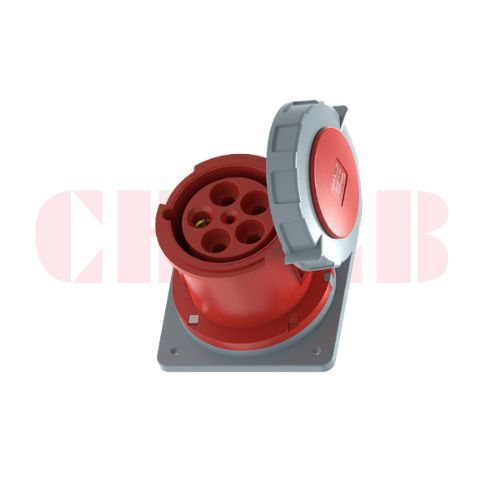

Harmony Series Panel Mount Socket 125A/5P-MXS3-B456-6 IP67 400V is designed for three-phase five-wire power systems (3P + Neutral + Earth) and complies with IEC 60309 red voltage coding, ensuring safe and correct 400V connections for high-current industrial applications requiring a neutral conductor.
This panel-mounted socket is intended for fixed installation on heavy-duty equipment enclosures, industrial control cabinets, and power distribution systems, providing a reliable 125A three-phase power interface for demanding applications.
The housing is manufactured from high-strength flame-retardant PA66, offering excellent resistance to impact, heat, corrosion, and aging under continuous high-load operation.
With an IP67 protection rating, the socket is fully protected against dust ingress and temporary water immersion, making it suitable for outdoor, wet, and harsh industrial environments.
A screw-type sealed protective cover ensures reliable contact protection when not in use, enhancing operational safety and extending service life.
⭐ Key Features
Rated Current: 125A
Rated Voltage: 400V (IEC Red Coding)
Poles: 5P (3P + Neutral + Earth)
Mounting Type: Panel Mount Socket
Protection Rating: IP67
Flame-retardant PA66 housing for heavy-duty use
High-conductivity copper alloy contacts
Screw-type sealed protective cover
Compatible with Harmony Series 125A three-phase industrial plugs
⭐ Typical Applications
High-power three-phase industrial equipment with neutral
Heavy-duty machinery and integrated power systems
Industrial control cabinets and distribution boards
Outdoor and harsh industrial environments
Construction sites and temporary high-load power supply
Maintenance, testing, and emergency power connections
