Product Overview

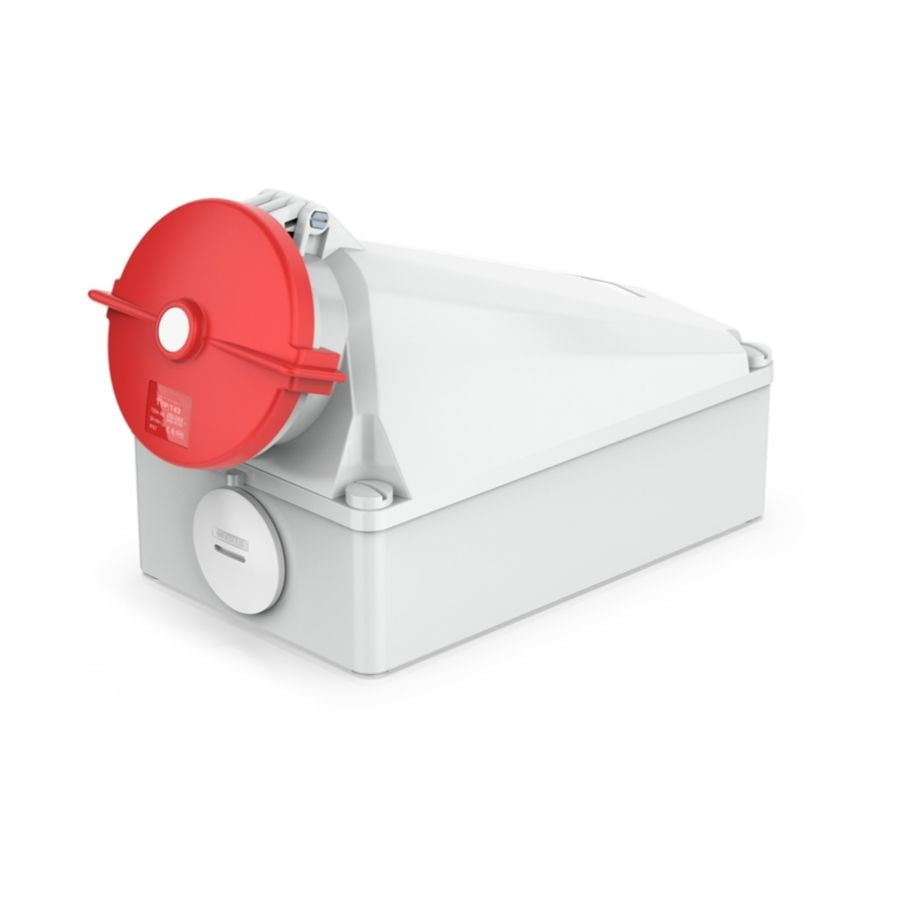

The CHBEB 125A 5-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing ultra high-current three-phase power connections with a neutral conductor for the most demanding industrial and outdoor environments.
With a rated current of 125A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this industrial socket offers maximum resistance against dust, water immersion, and extreme operating conditions. The red color coding and 6h clock position clearly identify 400V three-phase systems and prevent incorrect connections.
It is engineered for applications requiring very high current capacity, neutral availability, and the highest level of waterproof performance.
What Is a 125A 5-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 125A 5-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity with a neutral conductor while providing maximum protection against water and dust ingress.
It features a 3P+N+E pin configuration with an IP67 waterproof rating and a 6h clock position, ensuring correct phase alignment, neutral connection, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs in extreme environments.
Key Specifications
- Rated current: 125A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Ultra high-current waterproof three-phase power connection with neutral
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-143 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass (Nickel Plated) |
| Housing Material | Heavy-duty industrial insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 125A 5-pin IEC 60309 waterproof industrial socket is widely used in:
- Main three-phase power distribution systems
- Ports, shipyards, and shore power installations
- Large generators and containerized power units
- Mining, steel, cement, and heavy industries
- Outdoor and wash-down industrial environments
FAQ
When should I choose a 5-pin 125A industrial socket?
A 5-pin socket is required when the electrical system needs a neutral conductor in addition to three phases and earth, especially in high-current and outdoor applications.
Is this socket compatible with IEC 60309 125A plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 125A 5-pin IEC 60309 industrial plugs.
Is IP67 suitable for continuous outdoor use?
Yes. IP67 protection provides full dust sealing and resistance to temporary water immersion, making it ideal for harsh outdoor and industrial environments.
Why Choose CHBEB?
- Deep expertise in ultra high-current industrial connectors
- Strict quality control and high-current performance testing
- Full IEC 60309 standard compliance
- Stable production capacity for large-scale projects
- OEM and customization services available
