Product Overview

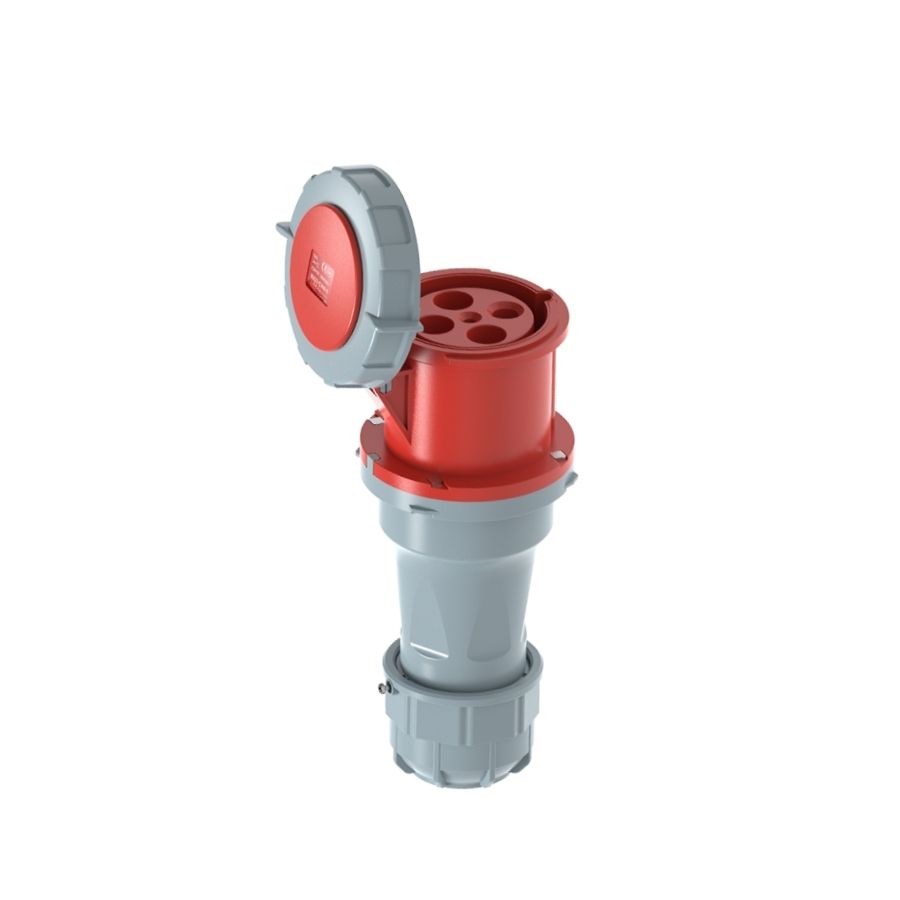

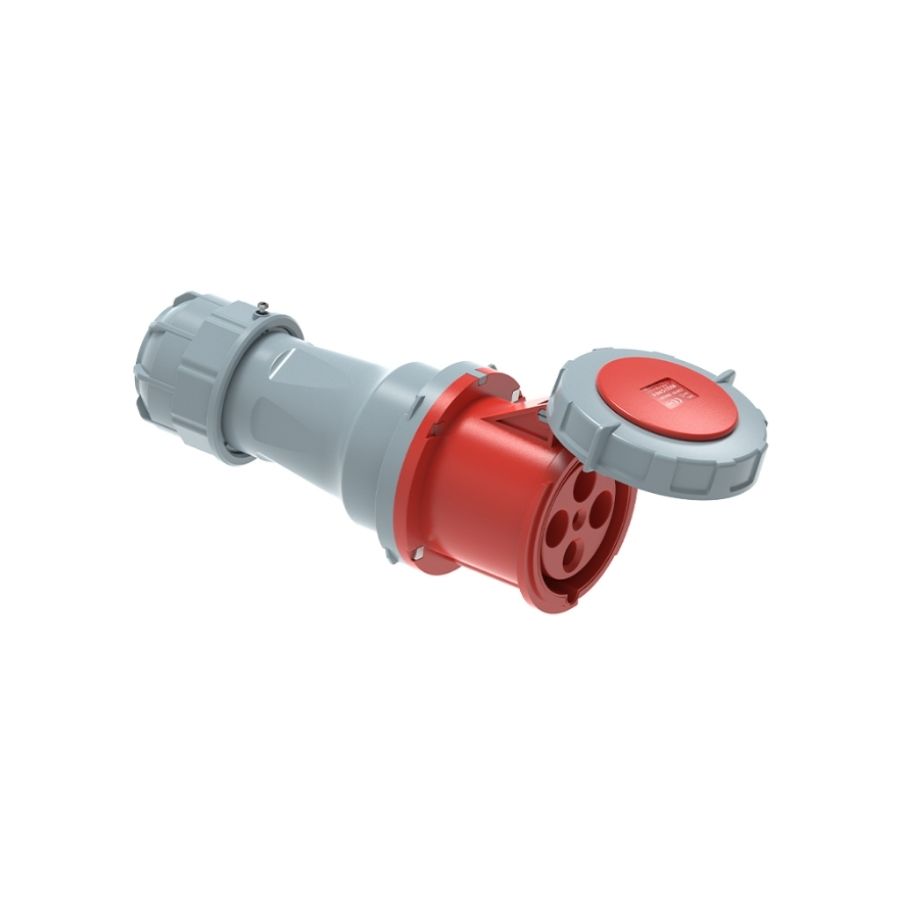

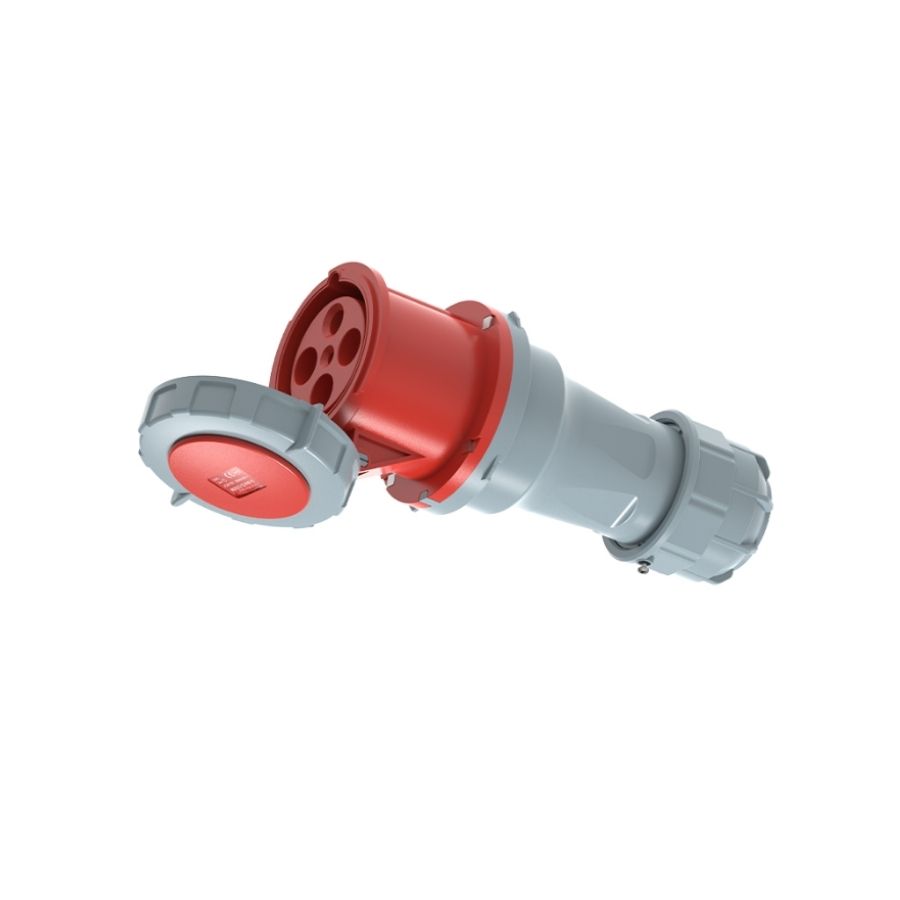

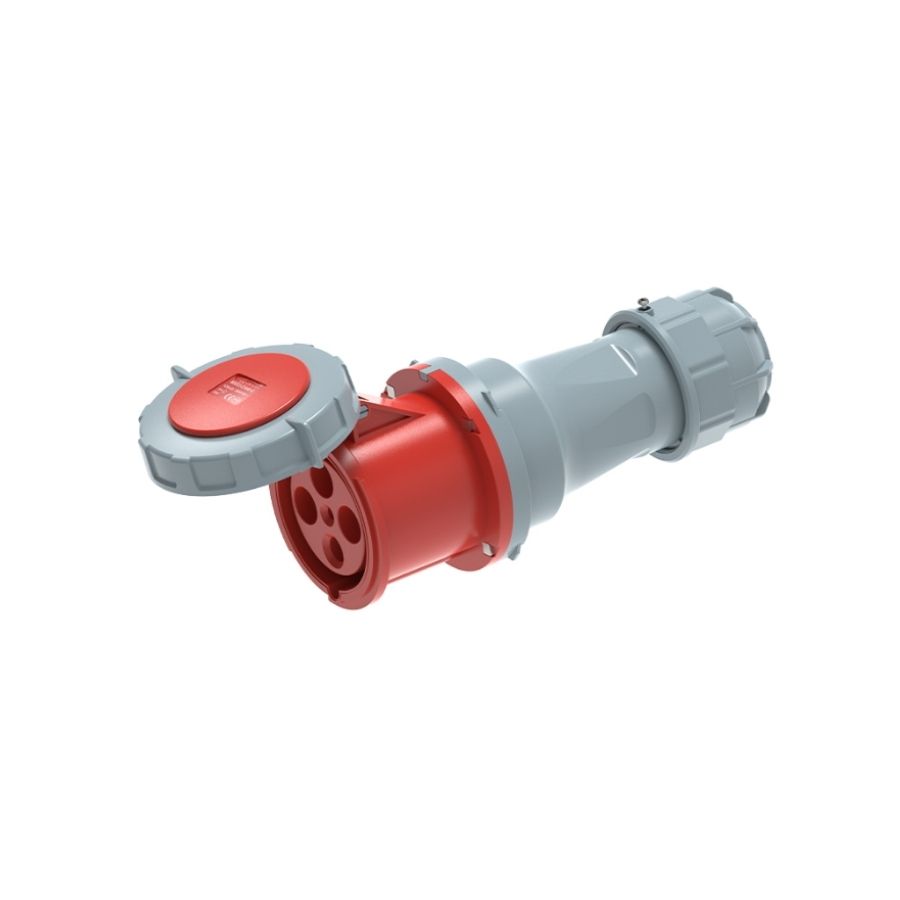

The 125A 4-Pin industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for heavy-duty industrial and commercial applications.
With a rated current of 125A, rated voltage of 400V, IP67 protection, and a defined 6h clock position, this connector ensures correct mating, stable current transmission, and reliable protection against dust and water ingress.
The inline connector structure supports secure cable termination and robust locking, making it suitable for high-current mobile equipment, industrial extension cables, and demanding outdoor environments.
What Is a 125A 4-Pin Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 125A 4-pin industrial connector is a standardized IEC 60309 power connector designed to supply 400V three-phase industrial electricity for high-current equipment.
Its inline construction allows secure cable assembly and reliable connections, making it ideal for portable machinery, temporary power distribution, and industrial extension power systems.
Key Specifications
- Rated Current: 125A
- Poles: 4P (3P + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 125A |
| Number of Poles | 4P (3P + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- High-current three-phase industrial extension power cables
- Portable and mobile heavy-duty machinery
- Temporary power distribution systems
- Outdoor industrial equipment
- Construction sites and maintenance operations
