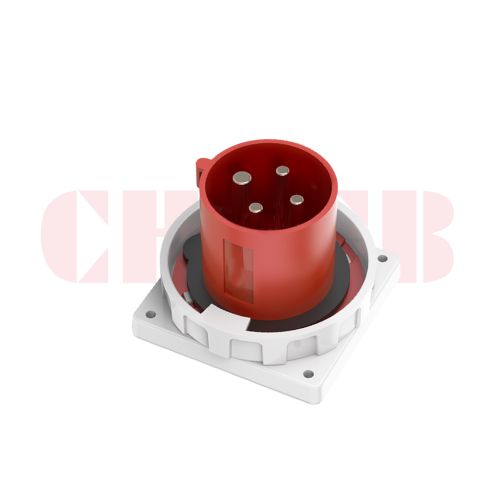

Panel Mount Inlet 125A/4P-3583 IP67 400V is designed for three-phase power systems (3P + Earth) and follows IEC 60309 red voltage coding, providing a safe and reliable fixed power input solution for high-current industrial applications.
This panel-mounted inlet is ideal for installation on equipment enclosures, control cabinets, and power distribution panels, ensuring stable electrical performance under continuous heavy loads.
The housing is made of high-strength flame-retardant PA66, offering excellent resistance to impact, heat, chemicals, and long-term aging in harsh industrial environments.
With an IP67 protection rating, the inlet is fully protected against dust and temporary water immersion, making it suitable for outdoor installations and high-moisture or wash-down environments.
⭐ Key Features
Rated Current: 125A
Rated Voltage: 400V (IEC Red Coding)
Poles: 4P (3P + Earth)
Mounting Type: Panel Mount Inlet
Protection Rating: IP67 (dust-tight & waterproof)
Durable flame-retardant PA66 housing
Heavy-duty nickel-plated copper contacts for stable conductivity
Fully compliant with IEC 60309 standards
Compatible with matching industrial plugs
⭐ Typical Applications
High-power three-phase industrial equipment
Control panels and power distribution systems
Heavy-duty motors and drive units
Outdoor fixed three-phase power connections
Energy, pumping, and water treatment facilities
Ports, docks, and infrastructure installations
