Product Overview

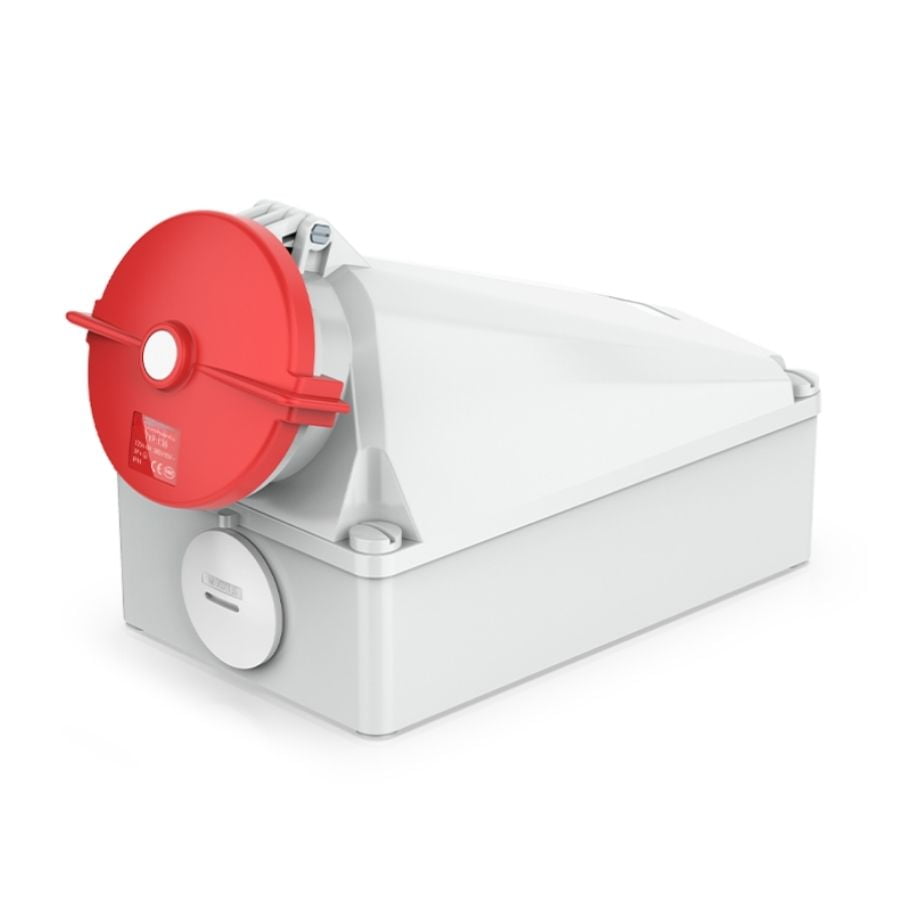

The CHBEB 125A 4-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing ultra high-current three-phase power connections for demanding industrial and outdoor applications.
With a rated current of 125A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this industrial socket delivers exceptional resistance against dust, water immersion, and harsh working conditions. The red color coding and 6h clock position clearly identify 400V three-phase power systems and prevent incorrect connections.
It is ideal for heavy-duty three-phase equipment where neutral is not required but maximum current capacity and waterproof performance are essential.
What Is a 125A 4-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 125A 4-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity while providing maximum protection against water and dust ingress.
It features a 3P+E pin configuration with an IP67 waterproof rating and a 6h clock position, ensuring correct phase alignment, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs in extreme environments.
Key Specifications
- Rated current: 125A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Ultra high-current waterproof three-phase power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-139 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass (Nickel Plated) |
| Housing Material | Heavy-duty industrial insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 125A 4-pin IEC 60309 waterproof industrial socket is commonly used in:
- High-power three-phase industrial machinery
- Ports, shipyards, and dockside power systems
- Large generators and power distribution units
- Mining, steel, and heavy manufacturing industries
- Outdoor and harsh industrial environments
FAQ
What is the difference between 4-pin and 5-pin 125A sockets?
A 4-pin socket is used when neutral is not required, while a 5-pin socket includes a neutral conductor for applications involving mixed loads or auxiliary circuits.
Is this socket compatible with IEC 60309 125A plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 125A 4-pin IEC 60309 industrial plugs.
Is IP67 suitable for extreme outdoor conditions?
Yes. IP67 protection provides full dust sealing and resistance to temporary water immersion, making it suitable for harsh outdoor and industrial environments.
Why Choose CHBEB?
- Specialized expertise in ultra high-current industrial connectors
- Strict quality control and high-current performance testing
- Full IEC 60309 compliance for global markets
- Stable production capacity for large-scale industrial projects
- OEM and customization services available
