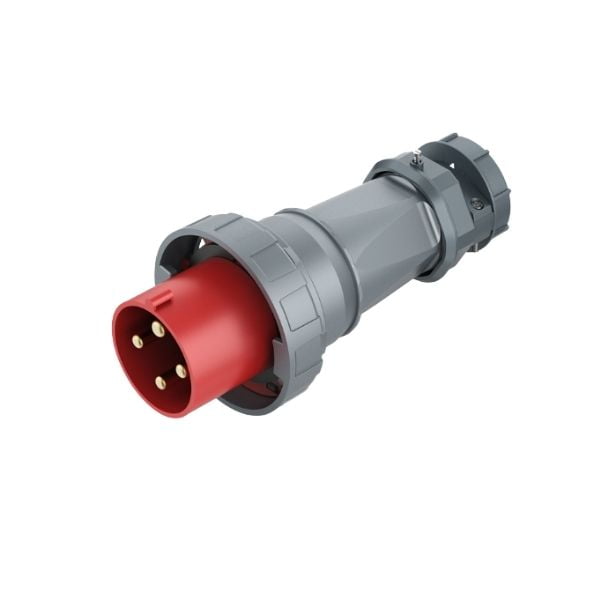

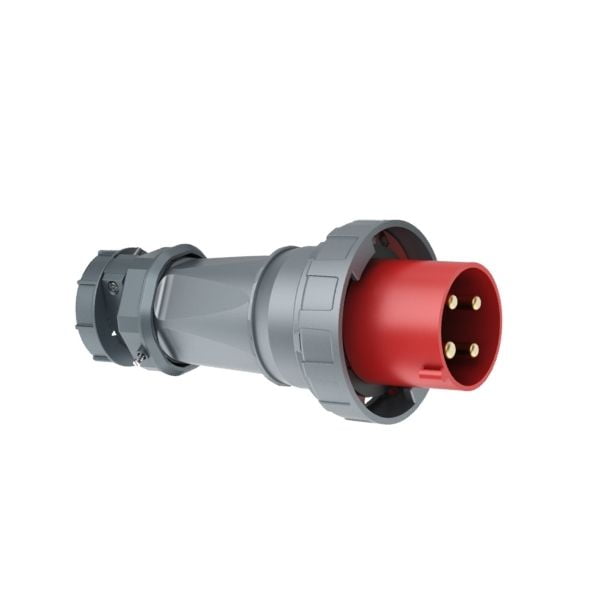

Product Overview
The CHBEB 125A industrial plug is designed for high-current three-phase power connections requiring stable and secure performance.
With a 4-pin configuration and a rated voltage of 400V, it is suitable for industrial equipment operating under heavy electrical loads.
Its IP67 protection rating ensures reliable operation in environments exposed to dust, moisture, and harsh working conditions.
What Is a 125A 4-Pin Industrial Plug?
A 125A 4-pin industrial plug is a high-current electrical connector rated for 400 volts and 125 amperes, designed for three-phase industrial power systems requiring secure and weather-resistant connections.
Key Specifications
- Rated current: 125A
- Rated voltage: 400V
- Pin configuration: 4-Pin (4P)
- Clock position: 6H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1443 |
| Product Type | Industrial Plug |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Poles | 4P |
| Clock Position | 6H |
| Protection Rating | IP67 |
| Pin Material | Brass H59 (Nickel Plated) |
Applications
This 125A 4-pin industrial plug is intended for high-power three-phase electrical systems where reliability and environmental protection are essential.
- Heavy-duty three-phase industrial machinery
- High-current power distribution equipment
- Ports, mining sites, and large construction projects
- Outdoor industrial installations exposed to moisture and dust
- Applications requiring IP67-rated protection and continuous high current
