Product Overview

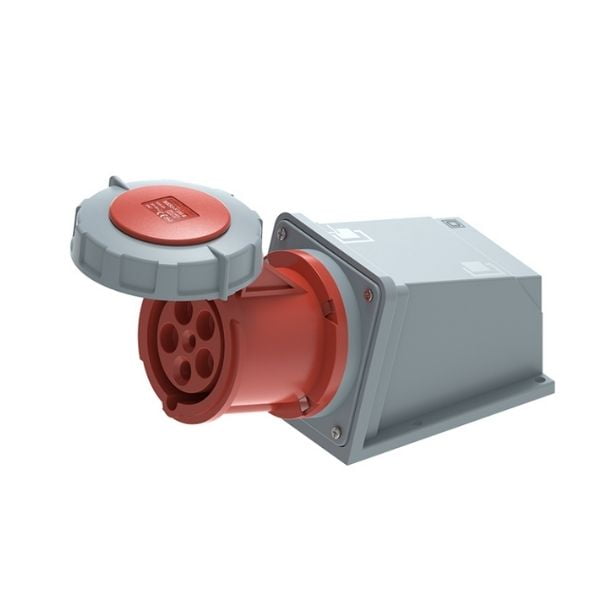

The CHBEB MX Series 125A 4-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a heavy-duty protective enclosure, providing safe and reliable power distribution for high-current three-phase industrial systems.
With a rated current of 125A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection rating, this enclosed socket delivers excellent resistance to dust, water, and harsh industrial environments. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
The MX Series enclosure provides enhanced mechanical strength and environmental sealing, making this socket ideal for fixed installations, outdoor use, and demanding industrial power distribution applications.
What Is a 125A 4-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 125A 4-pin enclosed industrial socket is an IEC 60309 standardized three-phase power outlet with earth connection, housed in a protective enclosure and designed to safely distribute 400V high-current industrial power.
It ensures stable three-phase power transmission, reliable grounding, and enhanced operational safety for heavy-duty industrial equipment.
Key Specifications
- Rated current: 125A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F446-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 125A IP67 4-pin enclosed industrial socket is widely used in:
- High-current three-phase industrial equipment
- Heavy-duty motors and machinery
- Factories and industrial plants
- Outdoor and harsh industrial environments
- Fixed industrial power distribution systems
FAQ
What is the difference between 4-pin and 5-pin industrial sockets?
A 4-pin socket provides three-phase power with earth, while a 5-pin socket includes an additional neutral conductor for mixed-load applications.
What does IP67 protection provide?
IP67 offers complete dust protection and resistance to temporary water immersion, making it suitable for outdoor and demanding industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 125A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Heavy-duty enclosure for high-current industrial use
- OEM and customization services available
