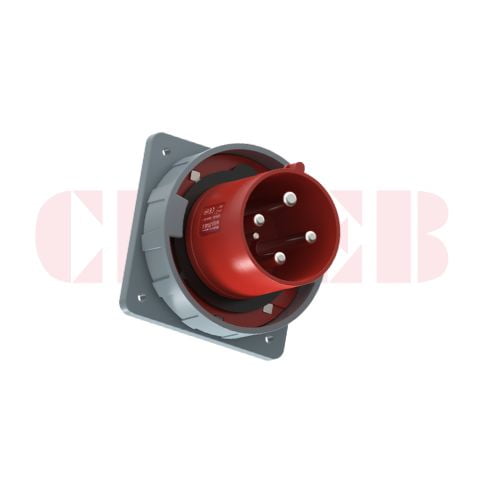

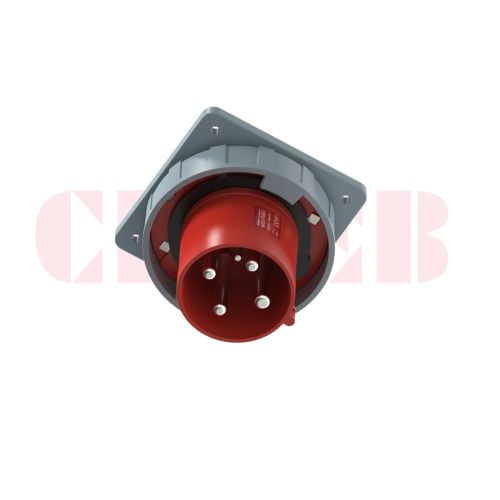

Product Overview
The CHBEB 125A 4-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a safe and stable high-current power input solution for industrial electrical equipment.
With a rated current of 125A, rated voltage of 400V, 4-pin configuration, and IP67 protection, this appliance inlet delivers reliable electrical performance and excellent resistance against dust, water, and harsh industrial environments. The red color coding and 6h clock position ensure correct voltage identification and safe connection.
Its panel-mounted structure allows permanent installation on machinery, power distribution units, and electrical control panels requiring standardized high-current three-phase connections.
What Is a 125A 4-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 125A 4-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to receive 400V three-phase power through a fixed panel-mounted interface.
It is widely used in industrial applications where high current capacity, waterproof protection, and standardized power connections are required.
Key Specifications
- Rated current: 125A
- Rated voltage: 400V
- Pin configuration: 4-Pin
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-E446-6 |
| Product Type | Appliance Inlet |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- High-power industrial machinery
- Three-phase power distribution systems
- Electrical control panels
- Outdoor and harsh industrial environments
FAQ
Is this appliance inlet compatible with standard 125A IEC 60309 plugs?
Yes. This appliance inlet fully complies with IEC 60309 standards and is compatible with all standard 125A 400V 4-pin industrial plugs with the same configuration.
Can this inlet be used in outdoor installations?
Yes. With an IP67 protection rating, it is suitable for outdoor and demanding industrial environments.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- High-conductivity H59 brass pins
- Stable quality from China source manufacturer
- OEM & customization services available
