Product Overview

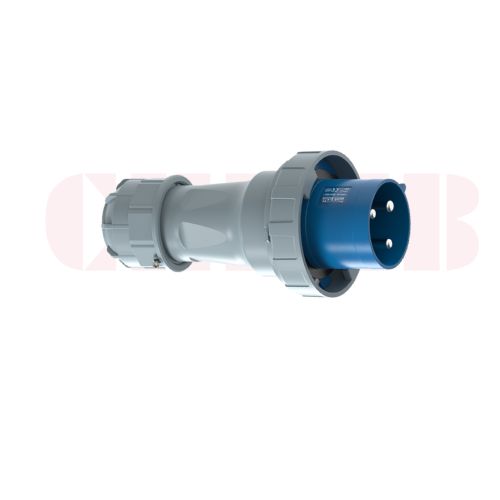

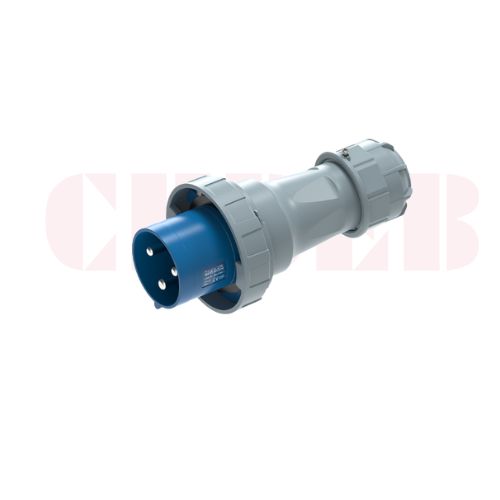

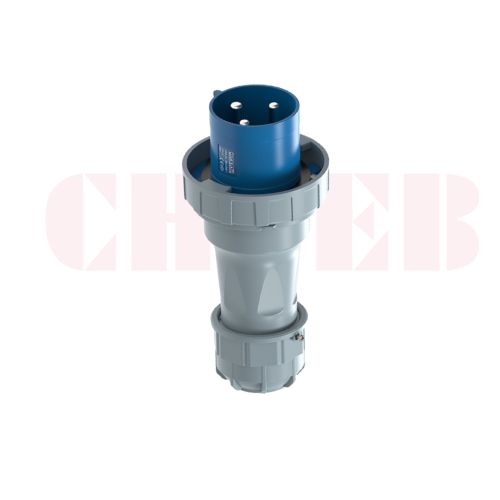

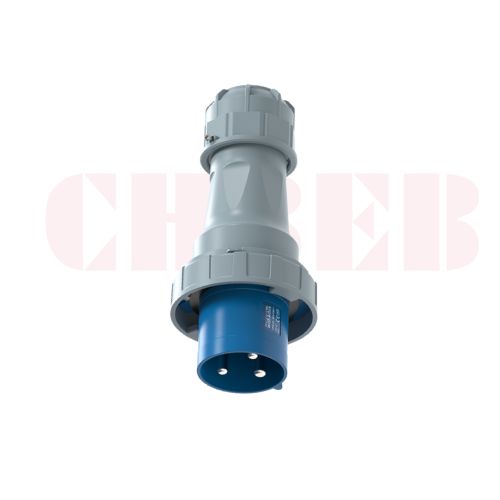

The CHBEB Harmony Series 125A industrial plug is designed for high-current single-voltage three-phase power connections.
With a 3-pin configuration and a rated voltage of 230V, it provides stable and secure power transmission for heavy-duty industrial equipment.
The IP67 protection rating ensures excellent resistance to dust ingress and temporary water immersion, making it suitable for harsh industrial and outdoor environments.
What Is a 125A 3-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 125A 3-pin industrial plug is a high-capacity electrical connector rated for 230 volts, designed to deliver reliable three-phase power in industrial applications requiring high current and enhanced environmental protection.
Key Specifications
- Rated current: 125A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Clock position: 6H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A436-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 125A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP67 |
| Pin Material | Brass H59 |
Applications
This 125A 3-pin industrial plug is designed for high-load 230V power systems where robust and stable current transmission is required.
- Heavy industrial machinery and power equipment
- High-current power distribution systems
- Generators and industrial control systems
- Outdoor and harsh industrial environments
- Applications requiring IP67 dustproof and waterproof protection
