Product Overview

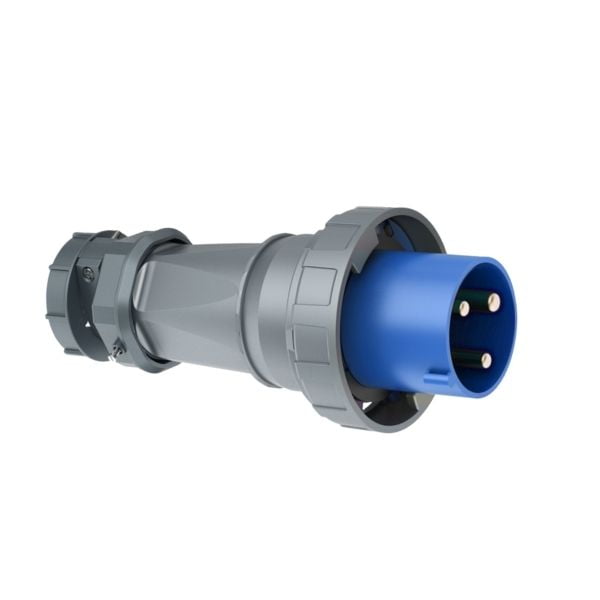

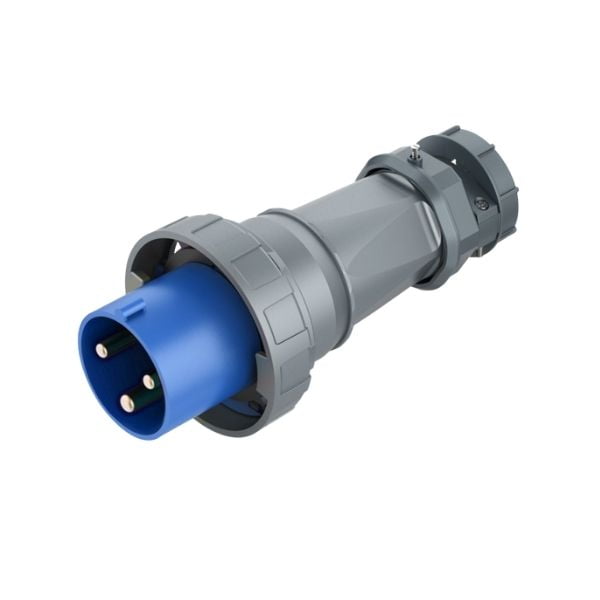

The CHBEB 125A industrial plug is engineered for high-current single-voltage industrial power connections where reliability and safety are critical.
With a 3-pin configuration and a rated voltage of 230V, it is suitable for heavy-duty equipment operating in demanding industrial environments.
Its IP67 protection rating ensures dependable performance in applications exposed to dust, moisture, and harsh operating conditions.
What Is a 125A 3-Pin Industrial Plug?
A 125A 3-pin industrial plug is a high-current electrical connector rated for 230 volts and 125 amperes, designed for industrial power systems requiring robust phase and earth connections in harsh environments.
Key Specifications
- Rated current: 125A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Clock position: 6H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-3400 |
| Product Type | Industrial Plug |
| Rated Current | 125A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP67 |
| Pin Material | Brass H59 (Nickel Plated) |
Applications
This 125A industrial plug is designed for high-load power distribution systems that require stable and secure electrical connections under demanding conditions.
- Heavy industrial machinery and large motors
- High-current power distribution systems
- Mining, ports, and construction equipment
- Outdoor and harsh industrial environments
- Applications requiring IP67-rated protection and continuous high current
