Product Overview

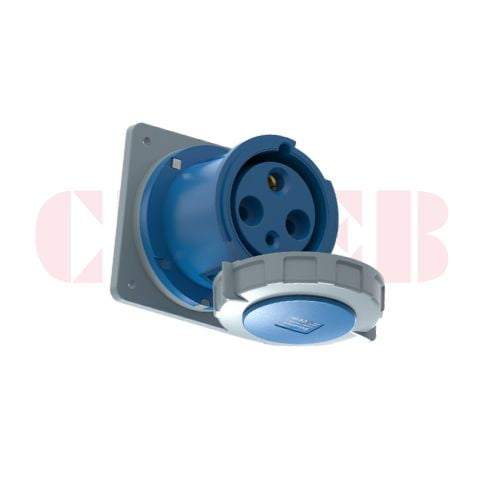

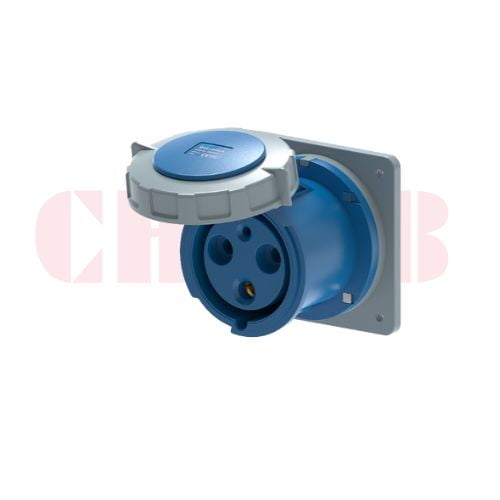

The CHBEB MX Series 125A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards, providing a high-current, waterproof panel-mounted power connection for heavy-duty industrial applications.
With a rated current of 125A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this socket ensures stable electrical performance in harsh environments exposed to dust, moisture, and water. The blue color coding and 6h clock position allow quick voltage identification and prevent incorrect connections.
Its flanged mounting design enables secure installation on distribution panels, control cabinets, and industrial equipment, making it ideal for fixed and outdoor power supply systems.
What Is a 125A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 125A 3-pin flanged industrial socket is an IEC 60309 standardized panel-mounted power outlet designed to deliver high-current 230V industrial power with reliable grounding and enhanced waterproof protection.
It is commonly used in heavy-duty industrial equipment that requires high current capacity without a neutral conductor.
Key Specifications
- Rated current: 125A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B436-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 125A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 125A IP67 3-pin flanged industrial socket is widely used in:
- High-current industrial machinery
- Power distribution panels and cabinets
- Heavy-duty equipment and generators
- Outdoor and harsh industrial environments
- Fixed industrial power installations
FAQ
What applications require a 125A 3-pin socket?
125A 3-pin sockets are typically used for high-current single-phase or two-pole industrial equipment that does not require a neutral conductor.
Is IP67 suitable for outdoor use?
Yes. IP67 protection ensures resistance to dust ingress and water immersion, making it ideal for outdoor and heavy-duty industrial applications.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 125A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- High-quality H59 brass contacts
- OEM and customization services available
