Product Overview

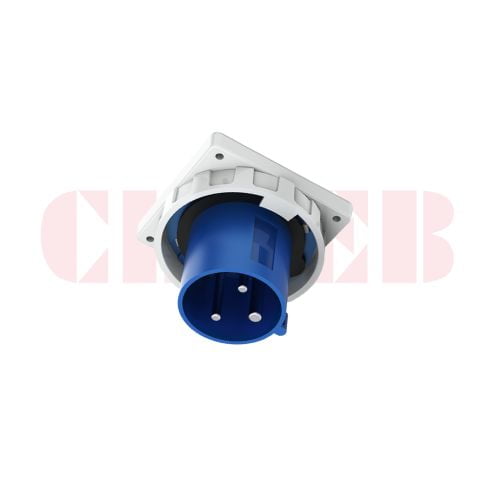

The CHBEB 125A 3-Pin Appliance Inlet is designed in accordance with IEC 60309 standards, providing a high-current, fixed power input solution for heavy-duty industrial equipment.
With a rated current of 125A, rated voltage of 230V, 3-pin configuration, and IP67 protection, this appliance inlet delivers stable electrical performance while offering excellent resistance to dust, water, and harsh environmental conditions. The blue color coding and 6h clock position ensure correct voltage identification and safe connection.
Its panel-mounted structure allows permanent installation on electrical equipment, distribution cabinets, and industrial power systems.
What Is a 125A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 125A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on equipment, designed to receive 230V single-phase power through a fixed panel installation.
It is commonly used in industrial environments requiring very high current capacity, waterproof protection, and standardized power interfaces.
Key Specifications
- Rated current: 125A
- Rated voltage: 230V
- Pin configuration: 3-Pin
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-3665 |
| Product Type | Appliance Inlet |
| Rated Current | 125A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass, Nickel Plated |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Heavy-duty industrial machinery
- High-current power distribution equipment
- Electrical control panels
- Outdoor and harsh industrial environments
FAQ
Is this appliance inlet compatible with standard 125A IEC 60309 plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 125A 230V blue industrial plugs with the same pin configuration.
Can this inlet be used outdoors?
Yes. The IP67 protection rating allows reliable operation in wet, dusty, and outdoor environments.
Why Choose CHBEB?
- Full IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- H59 brass pins with nickel plating for stable conductivity
- Reliable quality from China source factory
- OEM and customization services supported
