Industrial Plugs.
Start with the
right connection.

Explore industrial plugs for cable connections and equipment power interfaces. Compare configurations, understand the construction, and find the matching connector.

EXPLORE THE RANGE ↓REQUEST PRODUCT DETAILS ↗
16–125 ASERIES OPTIONS
Cable / FixedCONNECTION TYPES
OEM / ODMPROJECT SUPPORT

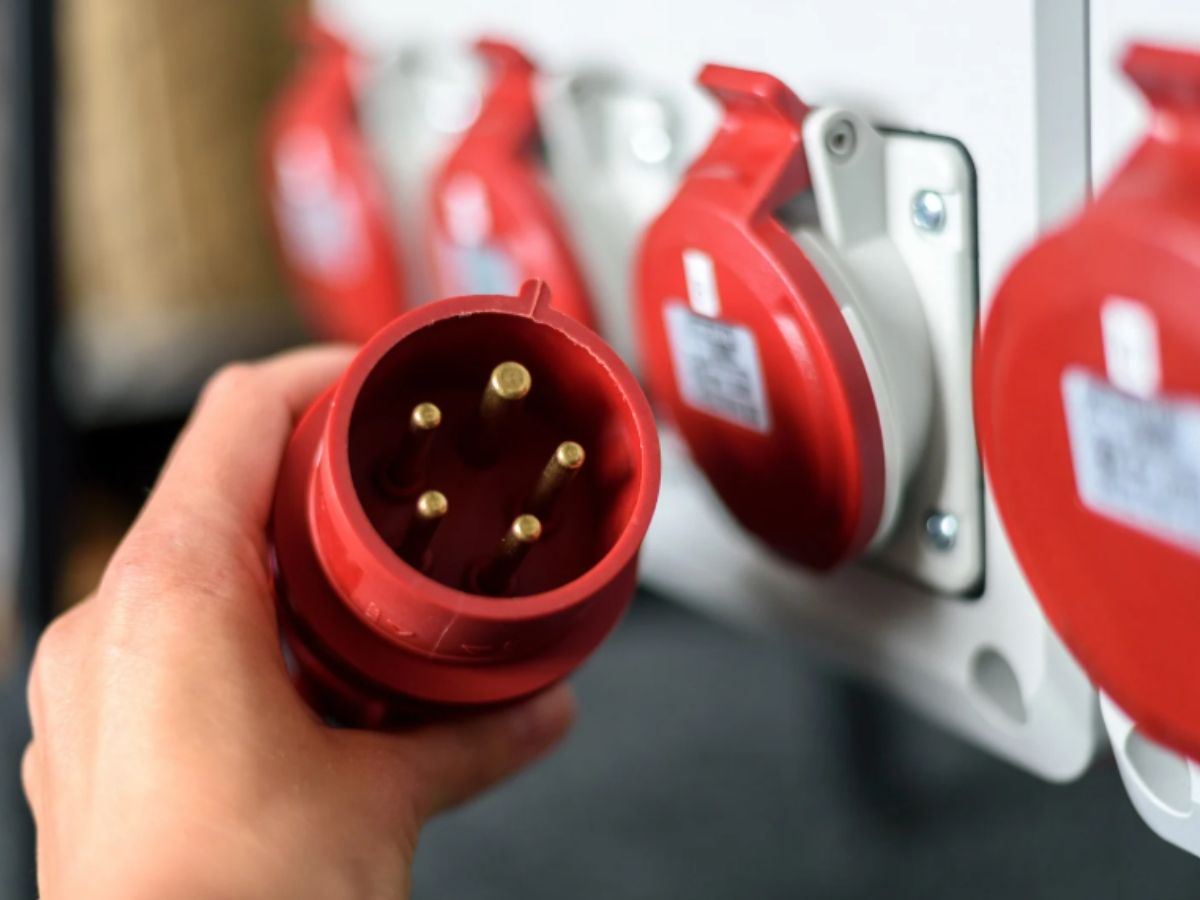

CHBEB industrial plug and mating connection
01 / FIND YOUR CONFIGURATION

Find your industrial plug.

Start with the rated current. Then confirm voltage, pole arrangement, protection rating and mating configuration.

PRODUCT IN MOTION

See the details.
See the connection.

Take a closer look at the industrial plug range, from the housing to the mating interface.

Watch on YouTube ↗

  • 01Product walkaround
  • 02Mating demonstration
  • 03Construction close-ups

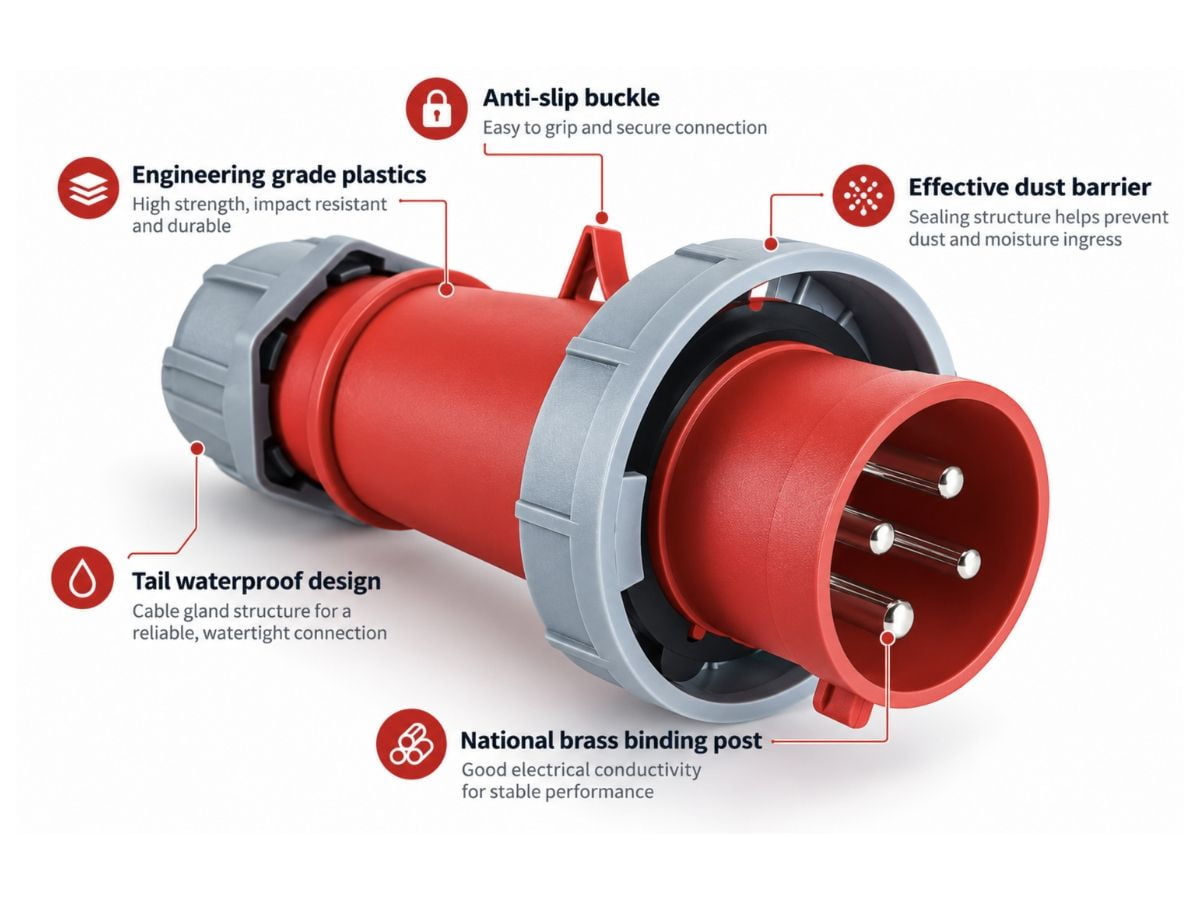

Industrial plug exterior construction
02 / INSIDE & OUTSIDE

A closer look at
every connection.

  • 1
    Insulated housing

    Check the grip, overall dimensions and environmental suitability.

  • 2
    Mating interface

    Confirm pole arrangement and the correct mating position.

  • 3
    Cable entry & retention

    Check the permitted cable diameter and assembly instructions.

03 / SAFETY & DURABILITY

Look beyond the rating.

Review the features that matter to your installation, from contact fit to enclosure protection and material suitability.

01 /

Contact fit

Check alignment and contact engagement in the matched assembly.

02 /

Cable retention

Review the cable-clamping arrangement and permitted cable size.

03 /

Ingress protection

Confirm IP rating and the conditions in which it applies.

04 /

Impact performance

Request model-specific test information for mechanical impact.

05 /

Chemical suitability

Check the actual chemicals, concentration and exposure conditions.

06 /

Ageing & service life

Review temperature, UV exposure and mating-cycle test data.

IP rating, impact performance, chemical resistance, ageing resistance and mating-cycle life must be confirmed for the selected model and test conditions.

04 / MATERIALS & CONTACTS

Materials chosen
for the application.

Housing
Contacts
Sealing parts
Industrial plug housing, contacts and sealing components
05 / COMPLETE THE CONNECTION

What connects to your plug?

Explore cable-end connectors and fixed socket options. Select a matching female interface for the male plug.

CABLE TO CABLEIndustrial Cable Connector

Industrial Cable Connector

For a matched cable-to-cable connection.

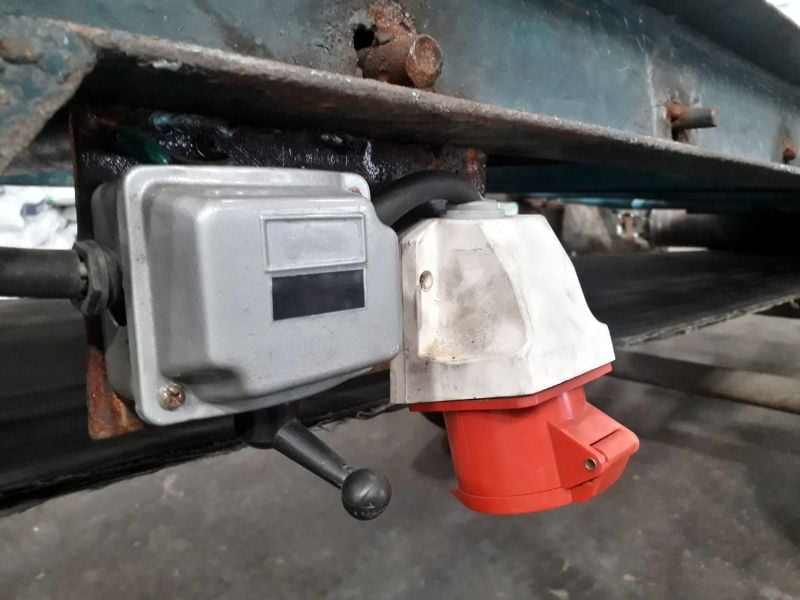

FIXED OUTLETWall Mounted Socket

Wall-Mounted Socket

For a matched fixed power outlet.

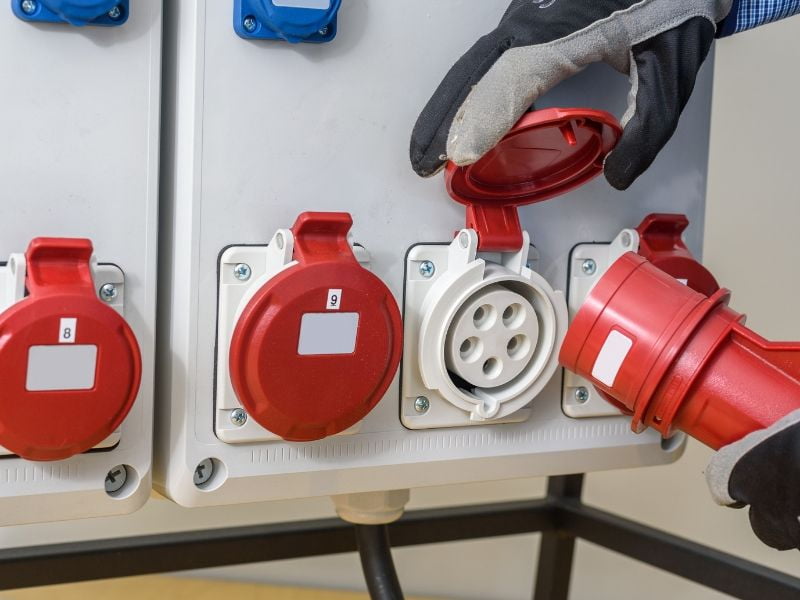

PANEL OUTLETPanel Mounted Socket

Panel-Mounted Socket

For a matched panel or enclosure outlet.

PAIRING CHECKCurrent · Voltage · Poles · Frequency · Earth-contact position · Interface geometry
06 / COMPARE CONNECTION TYPES

Choose the right installation.

Compare cable plugs, wall-mounted inlets, panel-mounted inlets and cable connectors side by side.

Selection pointIndustrial cable plug
Wall-mounted inlet
Panel-mounted inlet
Cable connector
Contact type
Male pinsMale pinsMale pinsFemale contacts
Mounting
Cable-mountedFixed to a wall or surfaceInstalled in a panel cut-outCable-mounted
Typical role
Cable power connectionFixed equipment power inletEnclosure or equipment inletMating cable-end connection
Rated current
16 / 32 / 63 / 125 A16 / 32 / 63 / 125 A16 / 32 / 63 / 125 A16 / 32 / 63 / 125 A
Voltage / Poles
Populate from the selected model datasheets.
IP / Materials
Confirm the rated condition, mating assembly and material specification for each model.
Key dimensions
Cable entry & overall sizeMounting holes & enclosurePanel cut-out & fixing holesCable entry & mating size
07 / INSTALLATION OVERVIEW

Check. Terminate. Secure. Inspect.

Confirm industrial plug model and mating interface

Confirm & isolate

Verify the selected model and mating connector. Isolate the supply and verify absence of voltage.

Prepare terminate

Prepare & terminate

Follow the model-specific conductor size, strip length, terminal markings and torque instructions.

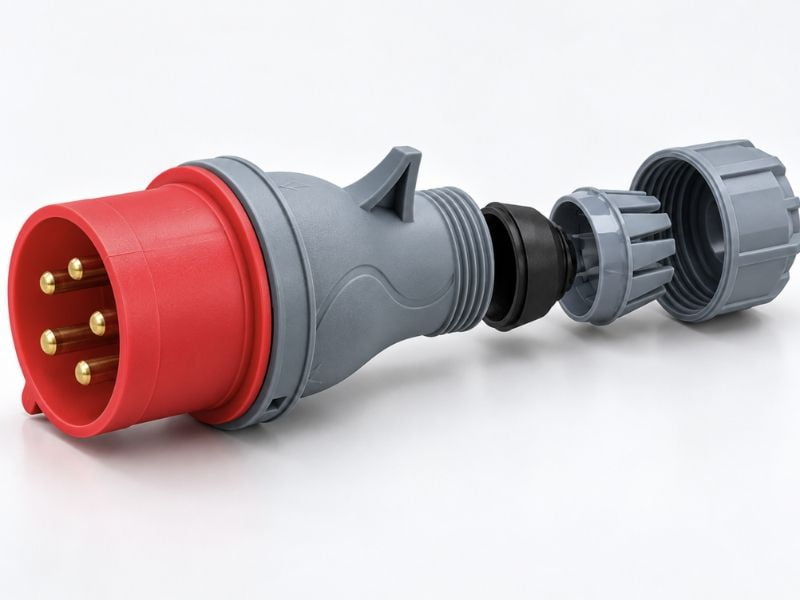

Secure seal

Secure & seal

Fit the specified seals and cable-retention parts. Assemble the housing as instructed.

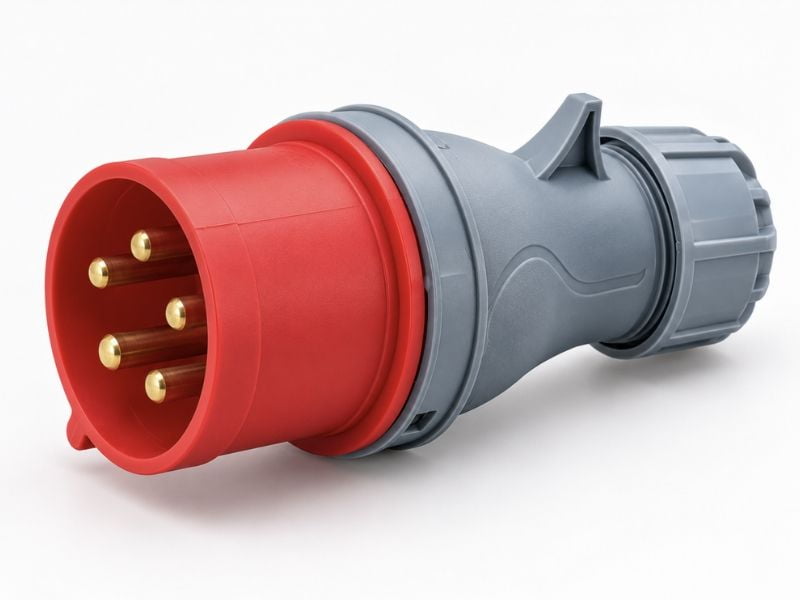

Inspect before use

Inspect before use

Have a qualified person complete the required wiring and safety checks before energising.

This overview does not replace the installation manual. Do not connect or disconnect under load unless the specific product is rated and instructed for that operation.

08 / BEFORE YOU ORDER

A few details.
A clearer selection.

What should I send for a quotation?

Send the current, voltage, pole arrangement, installation type, required IP rating, cable size and quantity. A photo or drawing of the mating connector is helpful.

Can I match connectors by colour alone?

No. Confirm electrical ratings, pole arrangement, frequency, earth-contact position and interface compatibility for the exact models.

Can I request drawings and samples?

Contact CHBEB with the model or application details to confirm drawing and sample availability before ordering.

LET’S CHECK YOUR REQUIREMENTS

Tell us what you need to connect.

Share a model, a photo or your project requirements. We’ll help you confirm the product configuration and available documentation.
