Think an industrial plug is just a simple piece of plastic? This common mistake can lead to equipment failure and serious safety risks. Let's look inside the complex manufacturing process.
Industrial plugs are made through a high-precision process. It involves injection molding with special engineering plastics like PA66. The process requires strict control over temperature and cooling to achieve structural accuracy, waterproofing, and electrical safety. It is far more complex than making standard plastic parts.
From the outside, it looks simple. But the journey from raw plastic pellets to a reliable, safe industrial connector is filled with challenges. The real magic happens inside the mold, where even a tiny error can lead to big problems. Let's dive into why this process is so demanding.
Why Is Injection Molding for Industrial Plugs So Difficult?
You need a plug that won't fail under pressure. But tiny mistakes in molding can make it weak and unsafe. This is a huge problem in demanding industrial environments.
The difficulty comes from the materials used, like PA6 or PA66. These engineering plastics shrink a lot as they cool. This means the mold must be incredibly precise, and the injection machine must be perfectly stable to avoid defects that compromise the plug's waterproof seal and structure.
The main challenge is the material itself. We use engineering plastics like PA6, PA66, or even versions with glass fiber for extra strength. These materials are fantastic for durability and heat resistance. However, they have a high shrinkage rate and cool very quickly. If the injection machine's pressure is not perfectly stable, or the mold's temperature isn't controlled to the degree, the final part's dimensions will be wrong. A tiny deviation can cause the waterproof seal to fail or the locking mechanism to feel loose. This is why standard injection molding machines just can't do the job. We need specialized equipment and highly precise molds to get it right every single time.
| Feature | Standard Plastic Molding | High-Precision Industrial Plug Molding |
|---|---|---|
| Material | General plastics (PP, PE) | Engineering plastics (PA66, PC) |
| Shrinkage | Low and predictable | High and sensitive to temperature |
| Mold Precision | Standard tolerance | Extremely high tolerance |
| Machine Stability | Less critical | Absolutely essential |
Does It Matter Where an Industrial Plug Is Made?
You've found a cheaper supplier for your industrial plugs. But will their quality hold up? The location of the factory can be a surprising indicator of reliability and performance.
Yes, it matters. Factories in coastal regions like Zhejiang and Shanghai often have more experience and better equipment. They can control the complex molding process for engineering plastics. Inland factories may struggle, leading to products with unstable dimensions, bad threads, and failed seals.
Over the years, we've seen a clear difference in manufacturing capabilities based on region. Factories in coastal areas like Zhejiang, Fujian, or near Shanghai have a long history with this kind of high-precision work. They have invested in the right machinery and have teams that understand how to manage injection temperature, pressure, and mold cooling cycles perfectly. In contrast, some factories in inland areas might use machines that are not stable enough for these demanding engineering plastics. This can lead to a host of problems that make a product unusable for serious industrial applications. We've seen parts with threads that are not perfectly round, clasps that do not close securely, and dimensions that are inconsistent from one part to the next. These are not just cosmetic flaws; they are critical failures.
| Quality Issue | Common Cause | Impact on Product |
|---|---|---|
| Unstable Dimensions | Unstable injection pressure | Poor fit, failed waterproofing |
| Non-Circular Threads | Inconsistent mold cooling | Connection is loose or impossible |
| Faulty Clasps | Material shrinkage not controlled | Plug can disconnect accidentally |
How Do Colors and Safety Features Complicate Production?

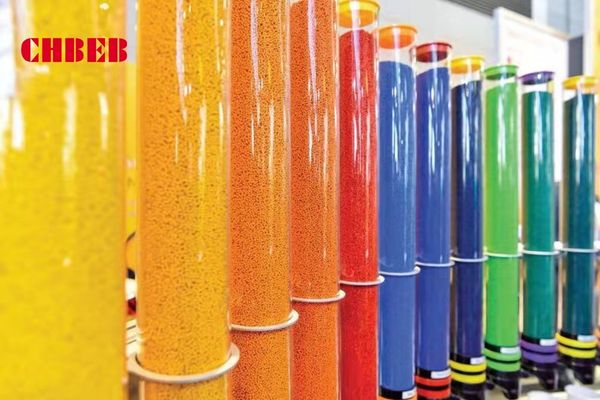

You need a plug in a specific color or with flame-retardant properties. This seems like a simple request. But adding these features can actually ruin the entire batch if not done correctly.
Adding color powders or flame retardants is a tricky step. The machine must be stopped and the mold opened. This causes the mold's temperature to fluctuate, which can ruin the cooling process. Poor control here leads to defects like discoloration, shrinkage, and warping, compromising the plug's seal.
Adding anything to the raw plastic, like a colorant or a flame retardant, adds another layer of complexity. To do this, we have to pause the machine and open the mold to add the new material. The problem is that opening the mold causes its temperature to drop instantly. This sudden change disrupts the stable cooling cycle, which is so important for engineering plastics. If the operator isn't skilled enough to manage this temperature fluctuation, the plastic shell can come out with all kinds of defects. You might see white streaks, ugly shrink marks, or even slight warping. A warped plug will not create a perfect seal. This means its IP waterproof rating is compromised, making it unsafe for use in wet or dusty environments. It shows how even a simple customization requires deep process expertise.
What Happens When Industrial Plug Manufacturing Goes Wrong?
We all make mistakes, but in manufacturing, one small error can jeopardize a huge order. I remember one time when a nearly invisible flaw almost cost us a major contract.
We once produced a batch of plugs for a German client where the cooling shrinkage was slightly too high. It was a stressful situation, but we were transparent with our client. We remade the entire batch quickly, and the client's trust in us grew even stronger because of it.
I'll never forget one of our first orders for a big German client. We were manufacturing a large batch of plug shells, and our internal testing showed that the cooling shrinkage on some of them was just slightly over our strict tolerance limit. It was a tiny amount, barely visible, but we knew it wasn't perfect. The delivery deadline was fast approaching, and we faced a difficult choice. We decided to be honest. We called the client, explained the situation, and told them we were not comfortable shipping the product. They were incredibly understanding and trusted our judgment. We immediately started over and remade the entire batch at our own cost. The new shipment was perfect, and the client's feedback was excellent. That experience taught us a valuable lesson about partnership and integrity. It also reinforced our quality control systems, and we've never had a similar issue since.
Conclusion
Making industrial plugs is a complex process. It demands strict control over materials, molds, and cooling to ensure safety and reliability. This is why quality industrial plugs are worth the investment.
