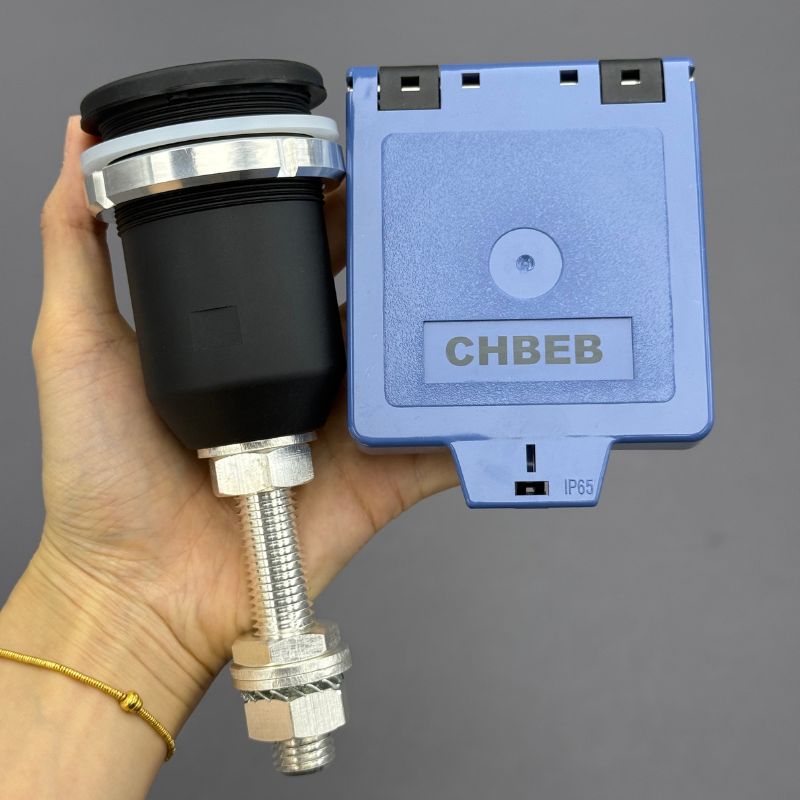

16BV Single-Pole Circular Insulated Connectors IP65

The 16BV range

High-current connections, selected for your equipment.

The CHBEB 16BV series includes single-pole circular insulated connectors for mobile power equipment, test benches and power distribution systems. Cable and panel configurations serve different installation needs.

01 / CONNECTION

Cable or panel installation

Confirm the connector configuration and mating part before selecting your model.

02 / APPLICATION

Power distribution & testing

Discuss your generator, test-bench or equipment connection with our team.

03 / EVALUATION

Check a sample first

Request drawings and sample information to evaluate the connection for your project.

Product Data

Technical specifications

Review the specifications for the selected model. Current capacity and installation requirements should be confirmed for your cable and application.

Product Name	16BV Single-Pole Circular Insulated Connector
Product Model	BEBHZ16BV-NS：BEBHZ16BV-NS
Connector Configuration	panel_plug
Rated Current	Up to 530 A
Rated Voltage	AC 1000 V / DC 1500 V
Contact Diameter	16 mm
IP Rating (Mated)	IP65
Touch Protection (Unmated)	IP2X
Contact Resistance	≤25 µΩ
Operating Temperature	−40°C to +90°C
Product Color	red

Product details

## About This Item

1. Single-Pole High-Current Connection

CHBEB 16BV Single-Pole Circular Insulated Connectors are designed for industrial power applications requiring detachable high-current connections. The range includes both panel-mounted and cable-mounted configurations.

2. Quick Bayonet Locking

The bayonet locking design allows matching connectors to be connected and securely locked without a complicated connection process. It is suitable for applications where power connections need to be assembled and disconnected for equipment installation or maintenance.

3. Panel and Cable Connector Options

The CHBEB 16BV series includes panel plugs, panel sockets, cable plugs, and cable sockets. Customers can select the appropriate configuration according to their equipment layout, cable size, and installation requirements.

4. Technical Specifications and Protection

The 16BV series uses 16 mm nominal contacts and offers different termination configurations. Rated current, voltage, protection conditions, and cable compatibility must be checked against the specific product model and complete mating assembly.

5. Industrial Applications and OEM Support

These connectors can be considered for industrial power distribution equipment, mobile generators, electrical test systems, and other high-current applications. CHBEB supports product selection, sample evaluation, OEM/ODM enquiries, and bulk purchasing.

Before You Order

Confirm the right connection

01 / ELECTRICAL RATINGS

Match your supply

Share the operating current, AC or DC voltage, duty and cable size for your application.

02 / CONNECTION DETAILS

Confirm the mating connector

Send the cable or panel connector model, mating-part photos and installation details.

03 / PROJECT REQUIREMENTS

Tell us what you need

Include your quantity, operating environment and any sample, drawing or OEM/ODM requirements.

Technical information

Check the details before ordering.

Request the dimension drawing and product information for your selected model. Tell us about the mating connector, cable size and installation space so we can review the details with you.

Request Drawings →Request Product Information

FAQs

Before you order

What information do you need for a quotation?

Send the connector model, current, AC or DC voltage, cable size and quantity. A drawing or photo of the mating connector is also helpful.

Can I request a sample?

Contact us with your specification and destination to confirm sample availability, cost and shipping.

Can you support private-label orders?

Send your branding, packaging and product requirements. We will review the options for your project.

Can you help evaluate a replacement connector?

Send the original model, drawings, cable details and operating requirements. We can review the interface and propose a sample evaluation. Compatibility must be confirmed for the specific connector pair and application.
